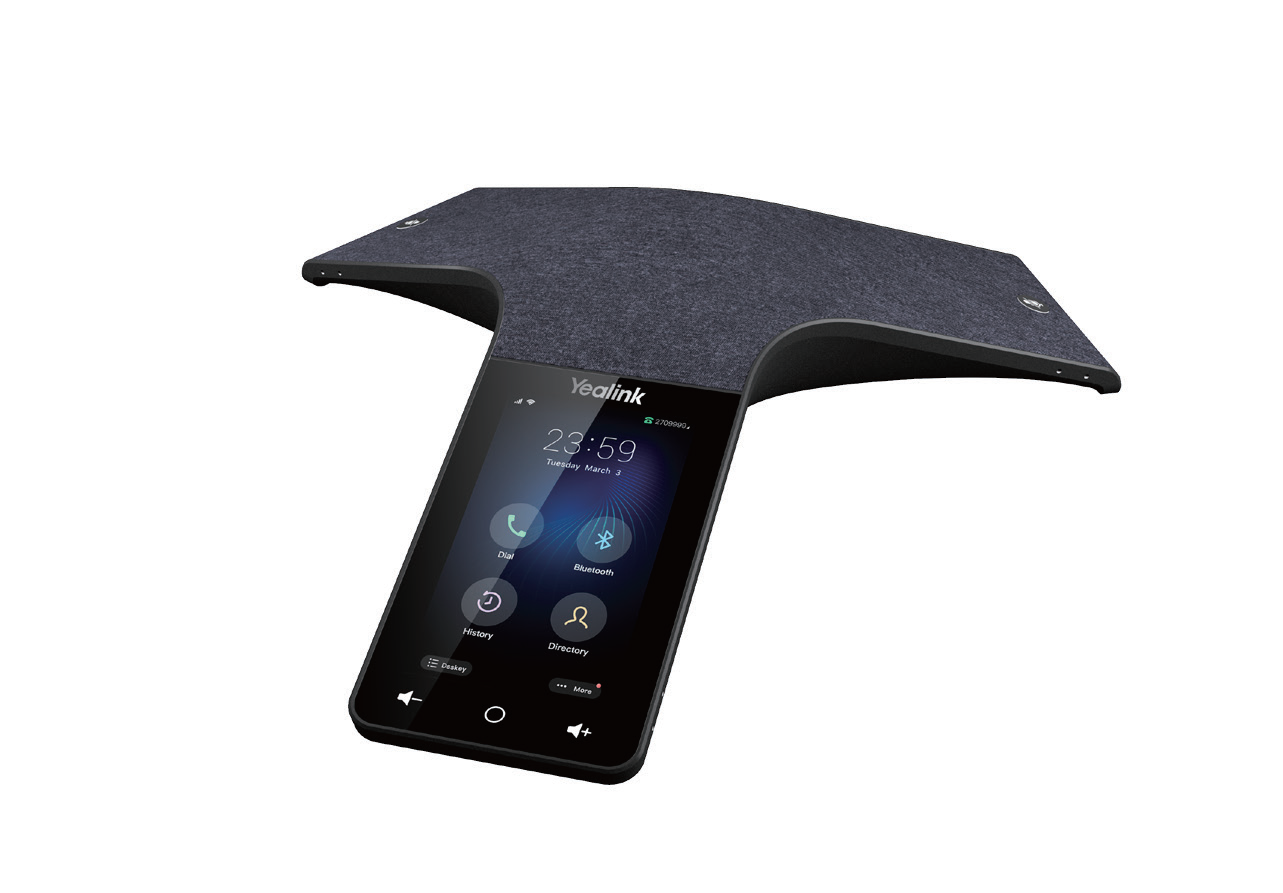

Touch-Sensitive HD IP Conference Phone
Yealink CP965 is designed for medium and large-sized conference rooms. Based on Android 9.0 system, it is a flagship HD conference
phone with powerful voice conferencing features and easy control operation. CP925 adopts a business and introverted design that perfectly
matches the calm style of the conference room, but also a triple-resistant material, which is impervious to any accidental liquid
spills. Its fingerprint-proof LCD screen with a clear UI interaction page makes it easy for everyone to control the meeting. CP925 has 13
built-in microphones, providing you with a clear and natural conference call experience. In addition, you can also connect CP965 to your
mobile device (such as PC device, smart phone, etc.) via Bluetooth or DECT or USB to achieve a variety of UC hybrid meeting modes.
CP965 can be connected with 3 CPs in star shape to realize synchronous sound pickup and playback, providing users with an optimum
audio experience. CP965 provides you with a new intelligent voice conferencing solution, which is the ideal office assistant for your conference
room.
Key Features and Benefits
Modest Design, Easy-to-Use User Interface
Yealink CP965 is a hermit in the conference room. Its black acoustics fabric can realize crystal-
clear audio and is resistant to water, oil, and stain. Its ultra-thin body, appropriate desktop
fit, and ingenious hidden wiring slot, perfectly fit for the simple business style in the conference
rooms. Additionally, its built-in Linux system and easy-to-use UI interface, allow users to launch
a meeting with one button, eliminating the embarrassment of not knowing how to operate the
device.
HD Audio, Smooth Communication
CP965 adopts Y-shaped design and has 12 built-in microphones for sound picking and 1 microphone
for noise cancellation. Its 20-foot and 360° omni-direction voice pickup provides users
with clear and natural voice conference experience.
Rich Features and High Expansibility
CP965 supports 10-way conference call, enabling participants from different locations to communicate
smoothly, reducing costs for your company. You can also connect CP965 to your mobile
devices (such as computer, smart phone, CPN10 device, etc.) through Bluetooth or Type C
or USB 2.0 port to realize Hybrid UC meeting (including PSTN, SIP, mobile phone). Moreover,
when working with the Bluetooth wireless extension microphone CPW25 or DECT wireless
extension microphone CPW65, the Yealink CP965 can provide up to a 20-meter voice pickup,
while still keeping the conference room table clean.
Audio Features
• Optimal HD audio
• Yealink Noise Proof Technology
• Smart Noise Filter ing
• 20-foot (6-meter) microphone pic kup range
• Apply to small to medium conf erence room
• Built-in 12-microphone array, 360-degree voice
Pickup
• Built-in 1-microphone array, decrease noise
• Loudspeaker
– Frequency: 100-20,000 Hz
– Volume: 94 dB at 0.5-m peak v olume
• 56mm diameter and 5w speak er
• Full-duplex speakerphone with AEC
• Echo cancellation tail length is up to 320ms
• Background noise suppression
• Codecs: G722, G722.1C, G726, G.729, G.729A, G723, iLBC, Opus, PCMA, PCMU
• DTMF: In-band, Out-of-band (RFC 2833) and SIP
INFO
• VAD, CNG, PLC, AJB, AGC
Phone features
• 1 SIP account
• Call hold, mute, DND, call recording, hotline
• 10-way conference call
• Analog PSTN calls via CPN10
• Redial, call waiting, emergency call
• Call forward, call transfer, call retur n, dial plan
• Ring tone selection/impor t/delete
• Set date time manually or automatically
• Volume adjustment
• Pairing via Bluetooth
• Create meeting directly
• Join meeting seamlessly
• Active Speaker
Star connection
• Up to four CP965: One Master CP, three Slave CP
• Wired network only
• Two expansion microphones for each CP965
Directory
• Local phonebook up to 1000 entr ies
• XML/LDAP remote phonebook
• Intelligent search method
• Phonebook search/impor t/export
• Call history: dialed/received/missed/forwarded
• Block list
IP-PBX features
• Busy Lamp Field (BLF)
• Multicast paging
• Intercom
• Anonymous call
• Anonymous call rejection
• Voice mail
• Distinctive ringtone
• Call pickup
Display
• 5” 720×1280 capacitive touch screen
• Volume key
• Home button
Interface
• 1 x RJ45 10/100M Ether net por t
• Built-in Wi-Fi (2.4GHz/5GHz, 802.11a/b/g/n)
• Built-in Bluetooth 4.2
• Power over Ethernet (IEEE 802.3af ), class 3
• 1 x USB 2.0 Type-A device por t
• 1 x USB 2.0 Type-C device por t
• 1 x Secur ity slot
Network and Secur ity
• SIP v1 (RFC2543), v2 (RFC3261)
• SIP server redundancy suppor ted
• IPv4/IPv6
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), La yer 3 ToS, DSCP
• SRTP for voice encryption
• Transport Layer Security (TLS1.3)
• HTTPS certificate manager
• AES encryption for configuration file (AES256)
• Adb encryption authenticated
• Digest authentication using MD5/MD5-sess
• OpenVPN, L2TP VPN
• WPA2/WPA3
• Secure boot
• GARP (Generic Attribute Registration Protocol)
Management
• Configuration: browser/phone/auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
• Auto-provision with PnP
• Zero-sp-touch, TR-069
• Reset to factory, reboot
• Package tracing export, system log
Other physical features
• Color: Black
• External Yealink PoE adapter (Optional)
• Power consumption (PoE): 5.9W-20W
• Dimension (W*D*H): 328mm*322mm*62mm
• Operating humidity: 10~90%
• Storage temperature: -10~40°C (+14~104°F)
Package Features
• Package content:
– Yealink CP965 IP conference phone
– Ethernet Cable (7.5m CAT5E UTP cable)
– M2×5 screw
– Screwdriver
– Wireless Microphone CPW25 (Optional)/CPW65 (Optional)
– Quick Star t Guide
– Yealink PoE Adapter YLPOE30 (Optional)
• Qty/CTN: 5 PCS
• N.W/CTN: 7.964 kg
• G.W/CTN: 9.02 kg
• Giftbox size: 398mm*384mm*105mm
• Carton Meas: 552mm*392mm*410mm
