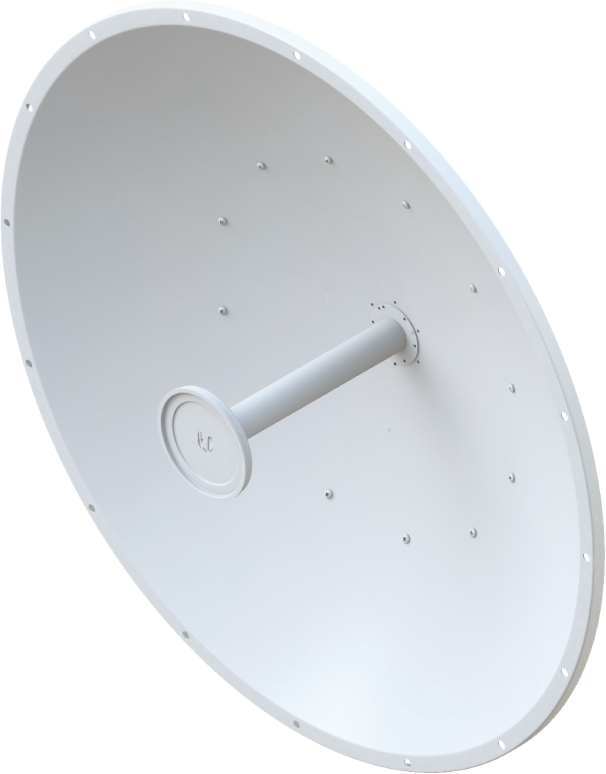

The AF-5G34-S45 offers 34 dBi of gain in a 1050-mm
diameter size.
Dimensions 1050 x 1050 x 421 mm
Weight 13.5 kg (29.76 lb)
Frequency Range 5.1 – 5.8 GHz
Gain 34 dBi
+ 45° Beamwidth 3° (3 dB)
– 45° Beamwidth 3° (6 dB)
F/B Ratio 42 dB
Max. VSWR 1.4:1
Wind Loading 1,779 N @ 200 km/h
Wind Survivability 200 km/h (125 mph)
Polarization Dual-Linear
Cross-pol Isolation 35 dB Min.
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Connectors Included
–> airFiberX wird noch benötigt!
