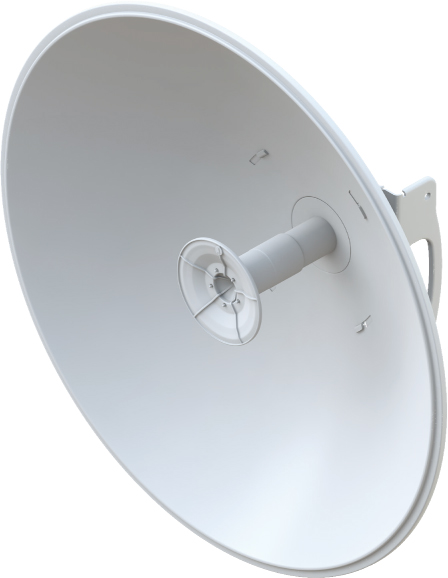

The AF-5G30-S45 offers 30 dBi of gain in a 650-mm
diameter size.
Dimensions 650 x 650 x 386 mm
Weight 7.4 kg (16.31 lb)
Frequency Range 5.1 – 5.9 GHz
Gain 30 dBi
+ 45° Beamwidth 5.8° (3 dB)
– 45° Beamwidth 5.8° (3 dB)
F/B Ratio 30 dB
Max. VSWR 1.6:1
Wind Loading 790 N @ 200 km/h
Wind Survivability 200 km/h (125 mph)
Polarization Dual-Linear
Cross-pol Isolation 35 dB Min.
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Connectors Included
–> airFiberX wird noch benötigt!
