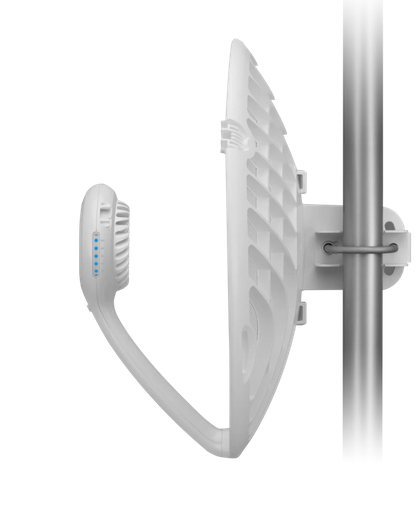

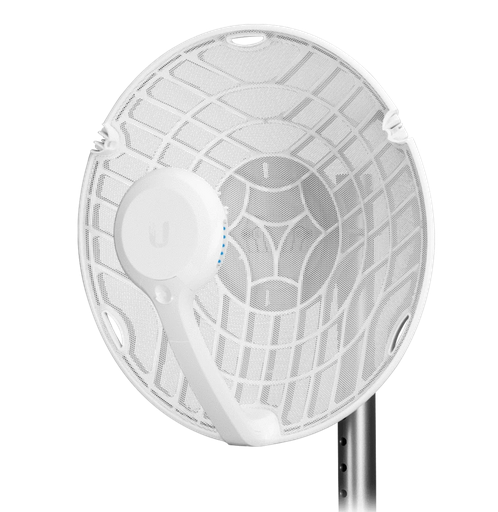

airFiber 60 GHz/5 GHz Radio System with 1+ Gbps Throughput AF60 is a 60 GHz radio for low-interference and high-throughput connectivity. It’s integrated with a high-gain dish antenna for long range and high performance. For the 60 GHz link, the AF60 supports two channel width options: 2 GHz and 1 GHz.
Features:
60 GHz radio with 5 GHz radio backup Low-interference 60 Ghz spectrum Long range, up to 2 km Up to 1 Gbps with low latency Integrated GPS Full and half bandwidth support Dimensions 413 x 413 x 320 mm (16.26 x 16.26 x 12.60″) Weight Without Mount With Mount 1.4 kg (3.09 lb) 1.8 kg (3.97 lb) Enclosure Aluminum, UV-stabilized Polycarbonate Antenna Gain 5 GHz 60 GHz 11 dBi 38 dBi Networking Interface (1) 10/100/1000 Mbps Ethernet Port Max. Power Consumption 11W Power Method Passive PoE, Pins 4, 5+ and 7, 8- Power Supply 24VDC, 0.5A Gigabit PoE Adapter (Included) Voltage Range +22 to +26VDC LEDs Power/Ethernet/5G/60G/GPS Mounting Pole Mount (Included) Wind Loading 420 N @ 200 km/h (94.4 lbf @ 125 mph) Wind Survivability 200 km/h (125 mph) ESD/EMP Protection ± 24kV Contact/Air Operating Temperature -40 to 60° C (-40 to 140° F) Operating Humidity 5 to 95% Noncondensing Certifications FCC, IC, CE System Maximum Throughput 1.8 Gbps Maximum Range 2+ km Encryption WPA2-PSK (AES)/WPA2 Enterprise OS airOS GP Radio Max. Conducted TX Power 5/60 GHz Combined 25 dBm Channel Bandwidth 60 GHz 5 GHz 2160 MHz 20/40/80 MHz Operating Frequency (Mhz) US/CA U-NII-1 U-NII-3 5150 5250 5725 5850 57,000 66,000 Worldwide 5180 – 5875 57,000 – 66,000 Management Radio (MHz) Worldwide 2412 – 2472 US/CA 2412 – 2462
