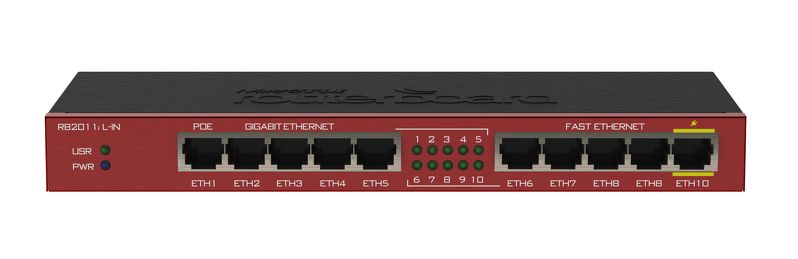

RouterBOARD 2011iL with Atheros 74K MIPS CPU, 64MB RAM, 5xLAN, 5XGbit LAN, RouterOS L4, desktop case, PSU
RB2011iL-IN
The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.
The RB2011iL-IN is the most basic model, with five Gigabit ethernet ports, five Fast ethernet ports, power jack and PoE support.
It?s powered by the new Atheros next generation 600MHz 74K MIPS network processor and has 64MB of RAM and a Level4 RouterOS license.
There is PoE output function for port #10 – it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
RouterBOARD 2011iL-IN comes with desktop enclosure and power supply.
Wall mount kit for network closet is available for purchase as an optional accessory.
Product specifications
Details
Product code RB2011iL-IN
CPU nominal frequency 600 MHz
CPU core count 1
Size of RAM 64 MB
Architecture MIPS-BE
10/100 Ethernet ports 5
10/100/1000 Ethernet ports 5
MiniPCI slots 0
MiniPCI-e slots 0
Wireless chip model None
Number of USB ports 0
Power Jack 1
Supported input voltage 7 V – 31 V
PoE out Yes>
PoE in Yes
Voltage Monitor No
CPU temperature monitor No
PCB temperature monitor No
Dimensions 214x86mm
Operating temperature range -35C to +65C
License level 4
Antenna gain DBI No
Current Monitor No
CPU AR9344-DC3A-R
Max Power consumption 6W
SFP ports 0
SFP+ ports 0
Number of chains 0
Serial port None
Suggested price $99.00
