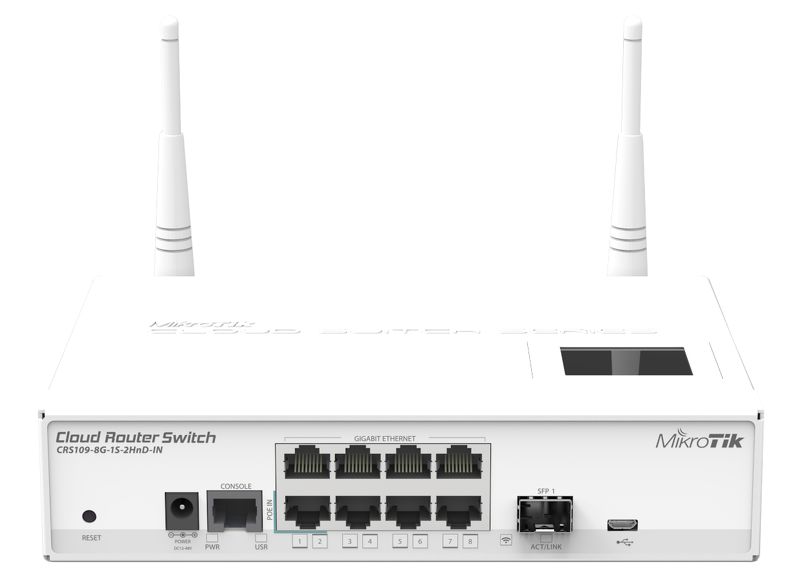

Cloud Router Switch 109-8G-1S-2HnD-IN with Atheros AR9344 CPU, 128MB RAM, 8xGigabit LAN, 1xSFP, 2.4Ghz, 802.11b/g/n wireless, RouterOS L5, LCD panel, desktop case, PSU (802.11af/at compliant)
CRS109-8G-1S-2HnD-IN
Cloud Router Switch 109-8G-1S-2HnD-IN is new „small size low cost“ member of our CRS series. It comes with eight Gigabit Ethernet ports and high power 1000mW 2.4GHz wireless. Product supports 10-57V and is 802.3af/at compliant!
Our CRS series combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
Product specifications
Details
Product code CRS109-8G-1S-2HnD-IN
SFP DDMI yes
CPU nominal frequency 600 MHz
CPU core count 1
Size of RAM 128 MB
10/100 Ethernet ports None
10/100/1000 Ethernet ports 8
MiniPCI slots 0
MiniPCI-e slots 0
Wireless chip model AR9344-DC3A-R
Wireless standards 802.11b/g/n
Number of USB ports 1
Power Jack 1
802.3af support yes
PoE out No
PoE in Yes
Supported input voltage 8 V – 57 V
Voltage Monitor Yes
PCB temperature monitor Yes
CPU temperature monitor No
Dimensions 200x145x45mm
Operating System RouterOS
Operating temperature range -35C to +65C tested
License level 5
Antenna gain DBI 2.5
Current Monitor Yes
CPU AR9344-DC3A-R
Max Power consumption 13 W
SFP ports 1
SFP+ ports None
USB slot type microUSB type AB
Number of chains 2
Serial port RJ45
Suggested price $149.00
Wireless specifications
2.4 GHz
TX
RX
1MBit/s 29 -97
11MBit/s 28 -90
6MBit/s 30 -96
54MBit/s 25 -76
MCS0 30 -96
MCS7 23 -73
