CPU Single core QCA9557 720 MHz
Size of RAM 128 MB DDR2 300Mhz
Data storage 128 MB NAND
10/100/1000 Ethernet ports 1
SFP cage 1
Wireless Built-in 5 GHz 802.11ac, dual-chain
PCB temperature monitor Yes
Voltage monitor Yes
Power input jack: 8-30 V DC, PoE in: 8-30 V DC
Power consumption 13 W
LEDs 8
Beeper Yes
Operating system MikroTik RouterOS, Level 4 license
Antenna gain 19 dbi
Frequency range 5.17 – 5.825 GHz
Polarization Vertical and horizontal
3DB Beamwidth – azimuth 120 deg
3DB Beamwidth – elevation 5 deg
VSWR 1.43 typ, 1.8 max
Port to Port isolation >40 dB min
Port to Port isolation >40 dB min
Cross Polarization >30 dB
Weight Package: 3.01 Kg
Unit: 1,36 Kg
Dimensions 152 x 598 x 78 mm

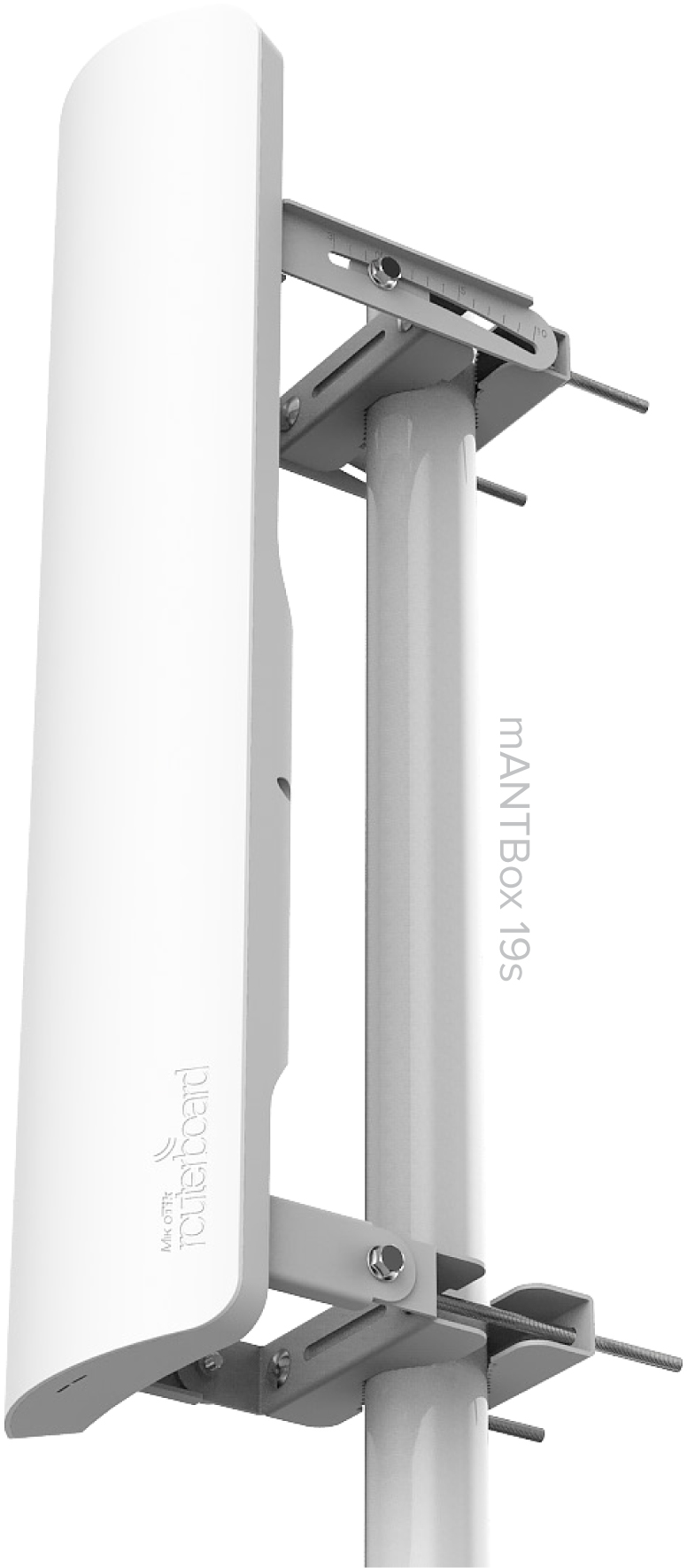

MikroTik 120 degree sector antenna mANTBox 19s, RB921GS-5HPacD-19S
SKU: 127410 Kategorie: Wireless LAN - Antennen
Weight | 3,01 kg |
---|---|
Hersteller | MikroTik |
Herstellerartikelnummer | RB921GS-5HPacD-19S |
