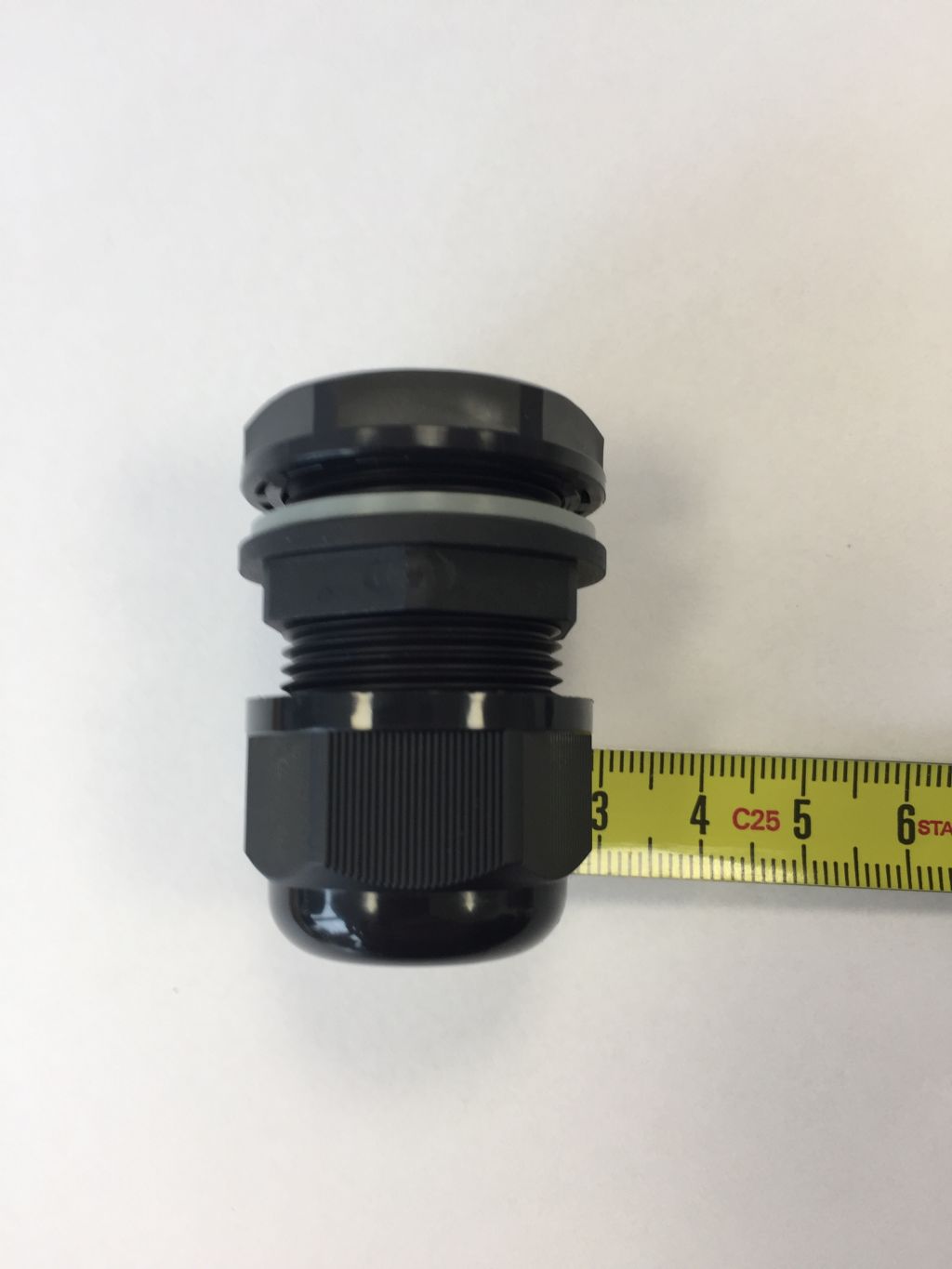

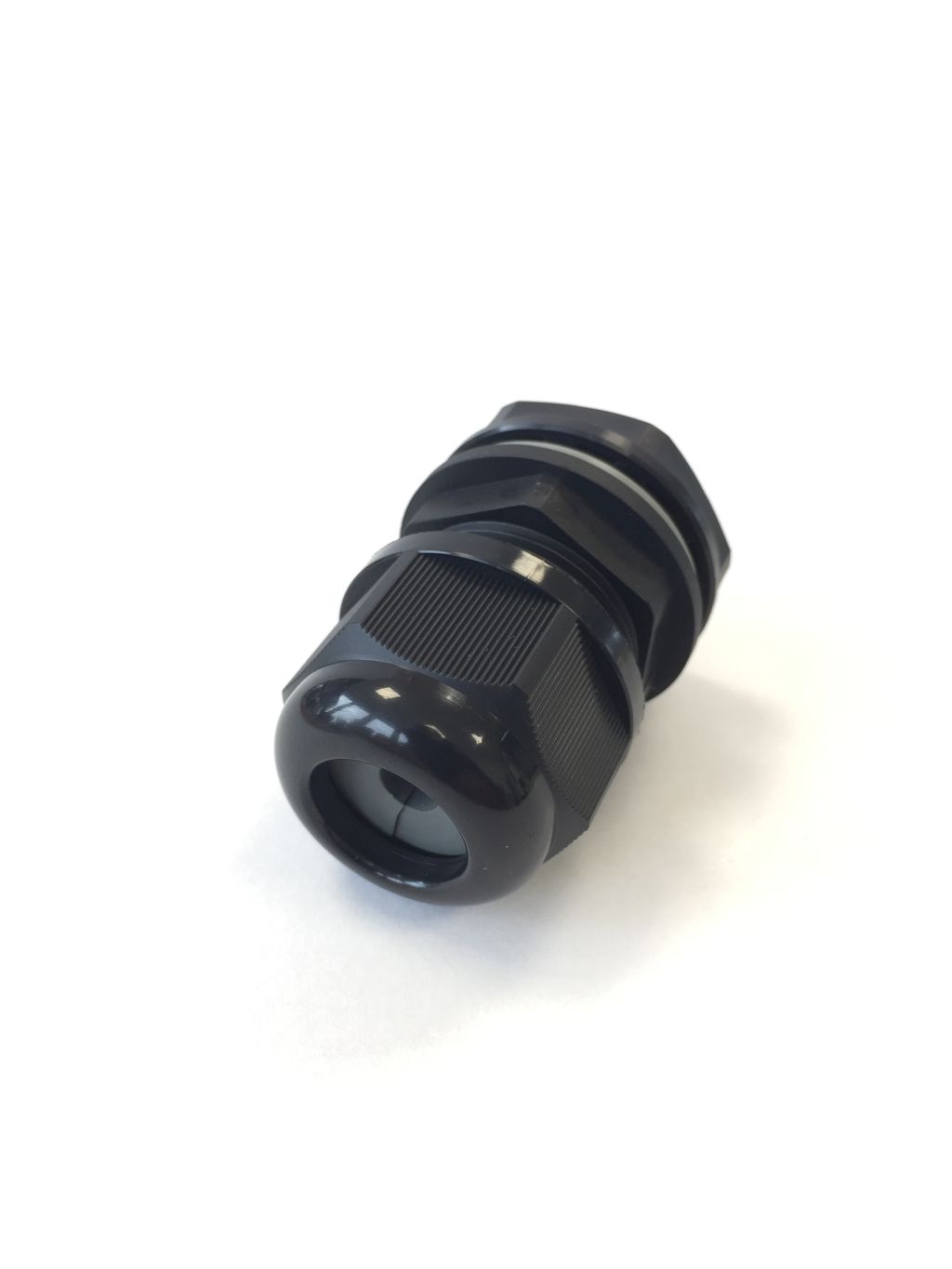

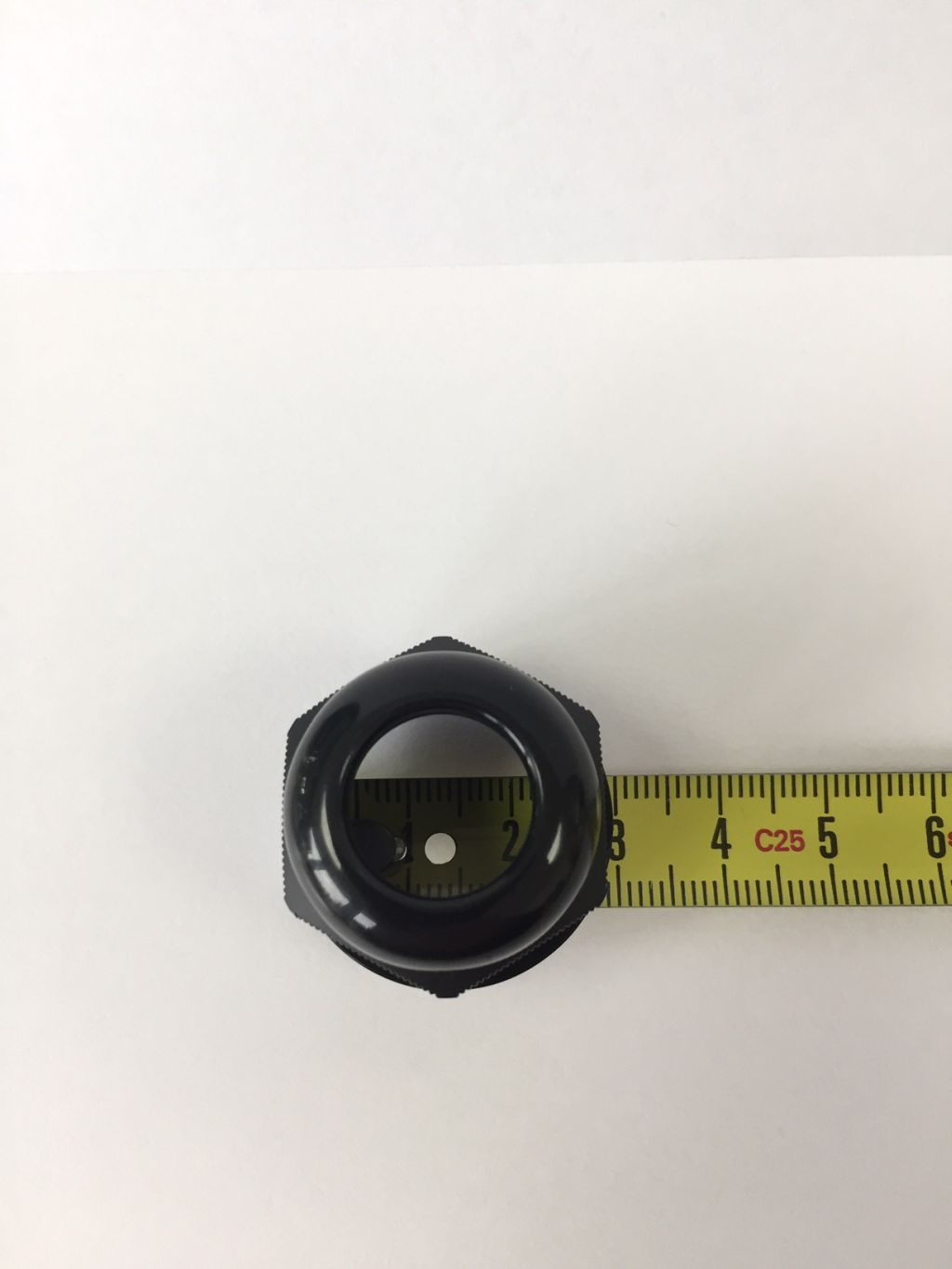

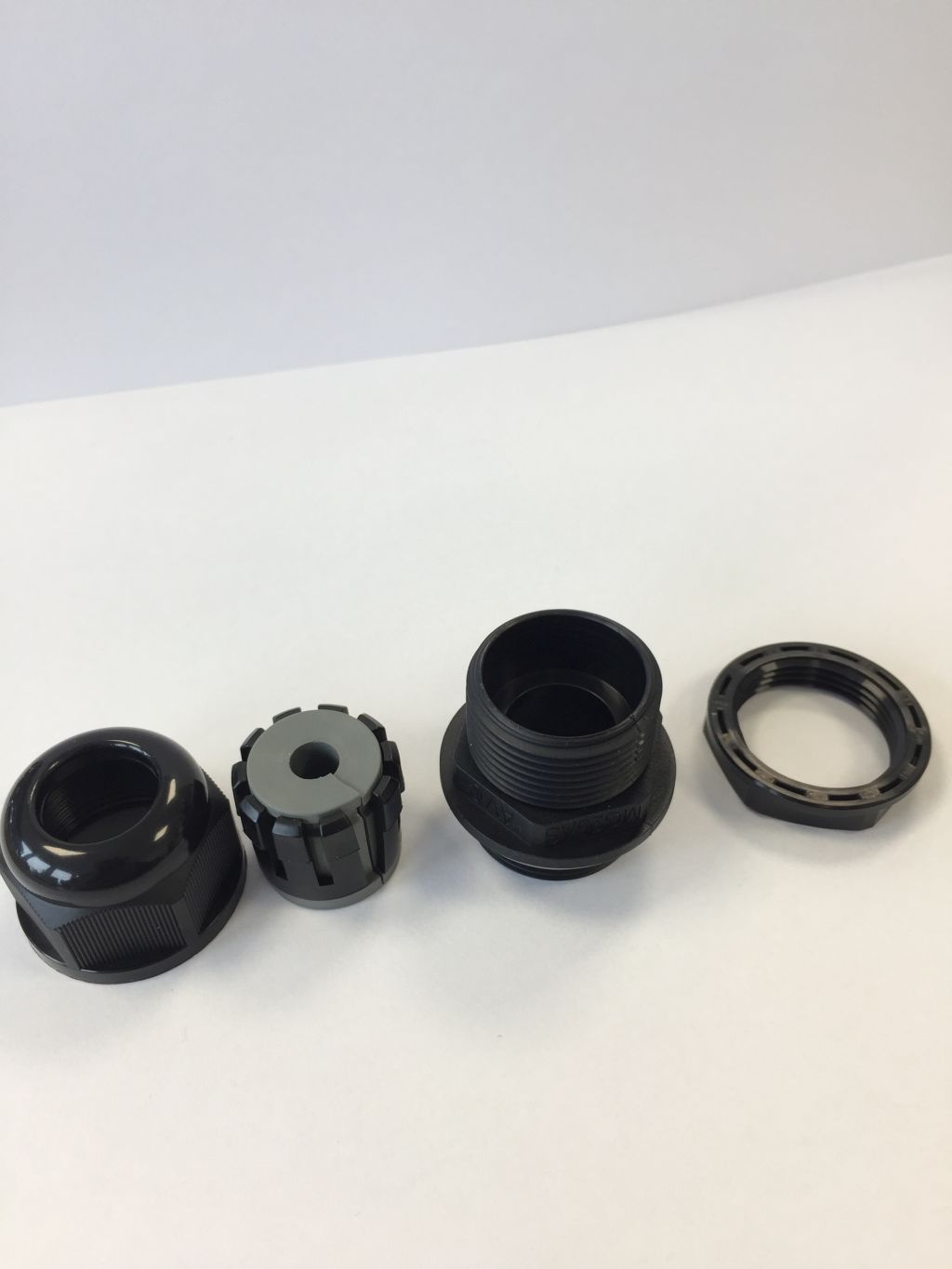

Thread Type: Metric M25 x 1,5 according to EN60423 Material Data: Halogen-free Nylon PA 66 ( Flammability UL 94V-2 ) for A.C.E.F parts. ( Contact us for Flammability V0 material ) Standard in weather-resistant EPDM rubbers for B.D parts. ( NBR rubber is optional for oil-resistance applications ) Our black cable glands are suitable for outdoor use have been subjected to UV light exposure and water immersion same as UL746C (f1) rating. UV ( Irradiance 340 nm ) exposure is performed by using a xenon-arc weatherometer for 1000 hours and intermittent exposure to water spray IP Protection: IP68 -5bar, Cable diameter 4 – 6mm Working Temp: – 40 °C to 105 °C ( – 40 °F to 221 °F ). Short-Term to 160 °C ( 320 °F ). Color: RAL9005 Black
Installation Kabelverschraubung M25x1,5 Grau IP68 -5bar (small)
SKU: 138422 Kategorie: Outdoor-Gehäuse-Zbh.
Gewicht | 0,023 kg |
---|---|
Größe | 0,4 × 0,245 × 0,07 cm |
EAN | 4038816053329 |
Hersteller | ALLNET |
Herstellerartikelnummer | MG25AS-06B |
Garantie | 12 Monate |
