| Weight | 1,25 kg |
| Dimensions | 235 × 235 × 42 cm |
| Hersteller | Cambium Networks |
| Herstellerartikelnummer | XV3-8X00A00-EU |
| Garantie | 60 Monate |
| Radios | 2.4 GHz: 802.11 b/g/n/ax, 4×4
5 GHz: 802.11 a/n/ac Wave 2/ax, 8×8(or configure as two 4×4)2.4/5 GHz scan, 1×1
BLE 4.1 |
| Wi-Fi | 802.11 a/b/g/n/ac Wave 2/ax |
| SSID | WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 |
| Security | Enterprise (802.1x/EAP), WPA PSK (TKIP), Open |
| Max PHY Rate | 2.4 GHz: 1,147 Mbps5 GHz: 4,804 Mbps |

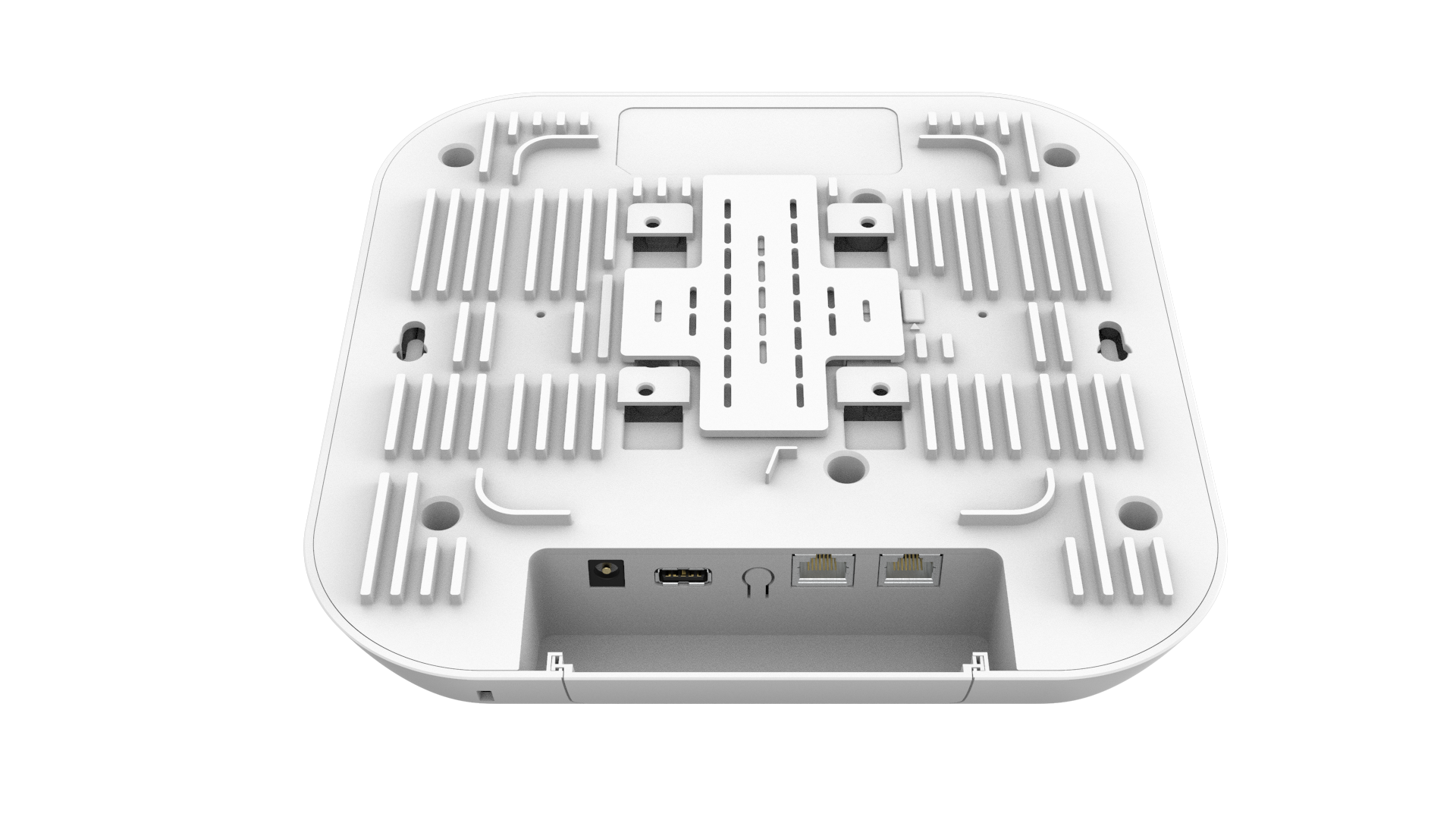

| Ports | 1 x IEEE 802.3 10/100/1000 Mbps
1 x IEEE 802.3bz 100/1000/2500/5000 Mbps
Auto sensing MDIX
1 x USB 3.0 |
| Antennen | 2.4 GHz: 5 dBi
5 GHz: 6.7dBi
2.4/5 GHz: sensor 5 dBi / 6.3 dBi
BLE 5 dBi |
| Max EIRP | 2.4 GHz: 31 dBm
5 GHz: 36 dBm |
| Stromversorgung | Max power with USB/BLE, 35 W (802.3bt)
802.3at mode with USB/BT disabled
12 VDC power, 2.1 mm (.083 in)
barrel connector |
| Sicherheit | Kensington Anschluss |
| Betriebstemperatur | 0ºC to 50ºC |
| Befestigung | Wand- oder Deckenmontage |
| Compliance | Wi-Fi Alliance 802.11 a/b/g/n/ac/ax, PP2.0,
FCC, IC, CE, EN 60601-1-2, EN 60950-1,
IEC 62368-1 Safety, EN 60601-1-2 Medical,
EN 61000-4-2/3/5 Immunity, EN50121-1 Railway EMC,
EN 50121-4 Railway Immunity, IEC 61373 Railway Shock & Vibration,
UL 2043 Plenum, EN 62311 Human Safety/RF Exposure, WEEE & RoHS |
| Betriebsarten | Standalone
Cloud managed cnMaestro or VM
Cloud managed XMS |
| WLAN | 1,024 clients, 16 SSIDs
WPA3, WPA-TKIP, WPA2 AES, 802.1x,
802.11w PMF |
| Fast Roaming | 802.11r, OKC, Enhanced roaming |
| Mesh | Multi-hop, either band |
| Band Steer / Load Balance | Ja |
| Wi-Fi Protokolle | VHT MCS rates, 16/64/256/1024-QAM, 20/40/80/160 MHz
TWT, Long OFDM Symbol, Transmit beamforming, Airtime Fairness, AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO Power Save, MRC, BPSK, QPSK, CCK, DSSS, OFDM, OFDMA, UL/DL MU-MIMO
IEEE 802.11 a/ac/ax/b/d/e/g/h/i/j/k/n/r/s/u/v/w |
