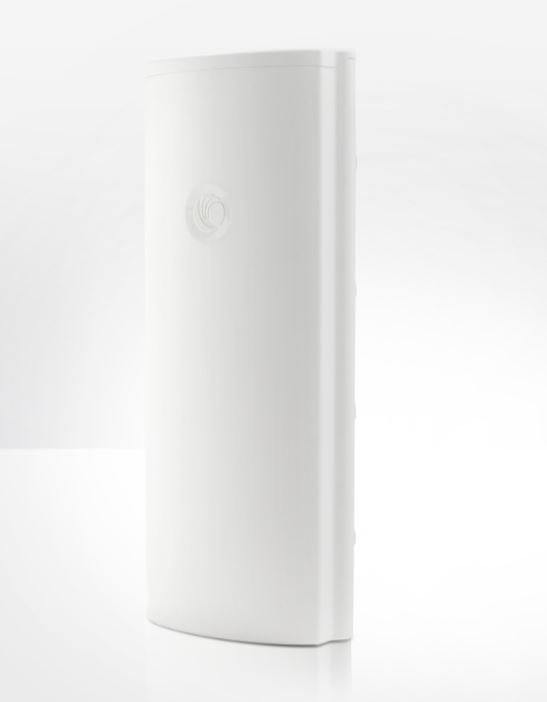

Cambium Networks ePMP3000 Sektor Antenne
Die Sektor Antenne hat einen 90° Öffnungswinkel und wurde für den Cambium ePMP 3000 AP entwickelt.
Features
- Öffnungswinkel von 90°
- 4×4 MU-MIMO
- 17 dBi gain
- 4.9 to 5.97 GHz Spektrum
- IP65 Zertifiziert
Cambium Networks ePMP3000 Sektor Antenne, 5 GHz, 90° für ePMP3000
- 5 GHz 90 Grad Sektor Antenne
- 4×4 MU-MIMO
- 17 dBi gain
- 4.9 to 5.97 GHz Spektrum
- Front-to-Back Ratio 30dBi
- IP65 Zertifiziert
| Weight | 3,7 kg |
|---|---|
| Dimensions | 594 × 157 × 110 cm |
| Hersteller | Cambium Networks |
| Herstellerartikelnummer | C050910D301A |
| Youtube | "https://www.youtube.com/watch?v=San3AeVz88k ", "https://www.youtube.com/watch?v= mj4XWmzkMXY" |
| Frequency Range | 4.9 GHz to 5.97 GHz |
| Gain | 17 dBi |
| 3 dB Beamwidth - Azimuth | 70 degrees |
| 3 dB Beamwidth - Elevation | 6 degrees |
| Electrical Downtilt | -2 degrees |
| Polarization | 2X Horizontal, 2X Vertical |
| Port-to-Port Isolation | > 20 dB |
| Front-to-Back Ratio | 30 dB |
| Maximum Input Power | 5 W |
| Input Impedance | 50 ohms |
| Mounting Connectors | 4 x RP SMA |
| Mounting Hardware | Included for mounting to mast diameters 5 cm to 10 cm |
| Environmental | IP65 |
| Radome Material | UV Protected ABS |
| Operating Temp | -40C to 60C |
