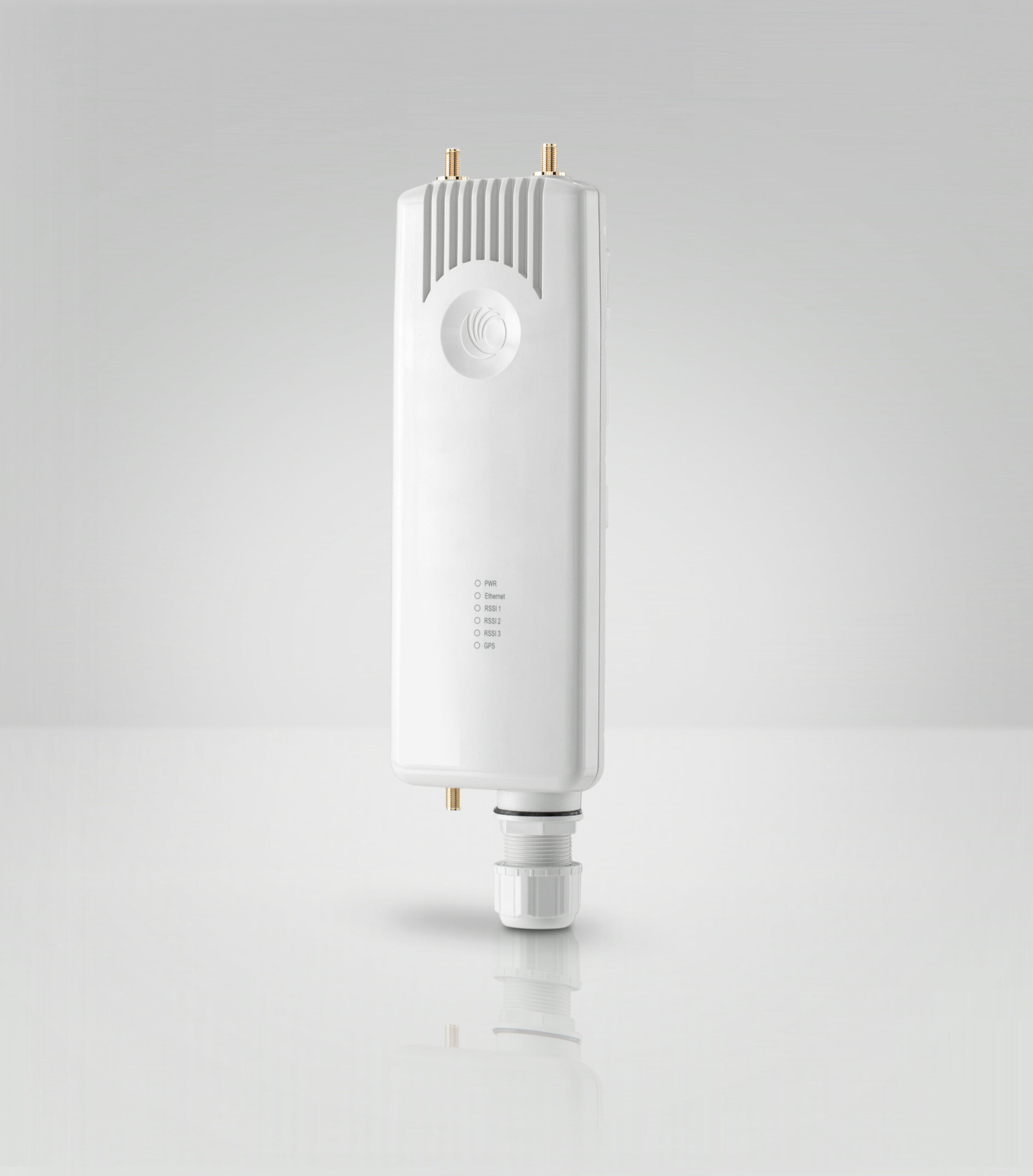

Cambium Networks ePMP MP 3000 MicroPOP

  • 5 GHz-Richtfunk
  • 2×2 MIMO bis zu 600 Mbps
  • 256QAM-5/6, 80 MHz support
  • Bis zu 64 Clients
  • Integrierte 8 dBi Dual Omni Antenne
  • IP67 Zertifiziert
Preis anfragen
SKU: 184593 Kategorie: Merkmale: , , , , , , ,

Cambium Networks ePMP MP 3000 MicroPOP
Der Cambium ePMP MP 3000 MicroPOP 5GHz AP ist eine 5-GHz-Richtfunkeinheit, der störungsarme und durchsatzstarke Verbindungen ermöglicht.
Der ePMP MP 3000 MicroPOP verfügt über eingebaute 8 dBi Dual Omni Antenne und verfügt über einen eingebauten real-time spectrum Analyzer.
Desweiteren ist der AP in Kombination mit den ePMP Clients perfekt dazu geeignet entlegene Access Points anzubinden.

Features:

  • 2×2 MIMO bis zu 600 Mbps
  • Bis zu 64 Clients
  • 256QAM-5/6, 80 MHz Support
  • Bis zu 1,5km Reichweite
  • Eingebaute 8 dBi Dual Omni Antenne

Einsatzgebiete:

  • Punkt zu Punkt
  • Punkt zu Multipunkt
  • Anbindung einer hohen Anzahl von gleichzeitigen Clients
Weight 0,98 kg
Dimensions 73 × 289 × 210 cm
Hersteller

Cambium Networks

Herstellerartikelnummer

C050910A233A

Youtube

"https://www.youtube.com/watch?v=MhUT_wqArmQ"

Channel Spacing

Configurable on 5 MHz increments

Frequency Range

5150 – 5875 MHz (exact frequencies as allowed by local regulations)

Channel Width

20, 40, 80 MHz

MAC (Media Access Control) Layer

Cambium Proprietary

Physical Layer

2X2 MIMO/OFDM

Ethernet Interfaced

100/1000BaseT, rate auto negotiated

Powering Methods Supported

802.3af or 802.3at Powered Device; 56VDC Passive PoE Injector (included)

Protocols Used

IPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping

Network Management

HTTPs, SNMPv2c, SSH

VLAN

802.1Q with 802.1p priority

Subscribers per Sector

Up to 64

ARQ

Yes

Nominal Receive Sensitivity (w/FEC) @20 MHz Channel

MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain)

Nominal Receive Sensitivity (w/FEC) @40 MHz Channel

MCS0 = -87 dBm to MCS9 (256QAM-5/6) = -64 dBm (per chain)

Nominal Receive Sensitivity (w/FEC) @80 MHz Channel

MCS0 = -84 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain)

Modulation Levels (Adaptive

MCS0 (BPSK) to MCS 9 (256 QAM 5/6)

Quality of Service

Three level priority

Antenna

Integrated dual-polarity 8 dBi omni-directional antenna

Transmit Power Range

0 to +26 dBm (combined, to regional EIRP limit) (1 dB interval)

Sector Antenna Connection

2 x 50 ohm, RP (Reverse Polarity) SMA

GPS Antenna Connection

1 x 50 ohm, RP (Reverse Polarity) SMA; Optional external GPS Puck Antenna avaialble model N000900L030A

Surge Suppression

1 Joule Integrated

Temperature

-40°C to +65°C

Power Consumption

13 Watt

Input Voltage

56 Volts Nominal (input range 41 to 59V)
