Cambium Networks cnPilot E425
180337 2 Genial-Media GbR
180337 3 Genial-Media GbR
180337 4 Genial-Media GbR

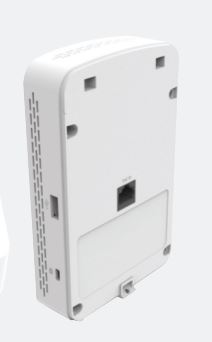

Cambium Networks cnPilot E425 Wall Plate, 802.11ac Wave2 Dualband 2×2 Access Point

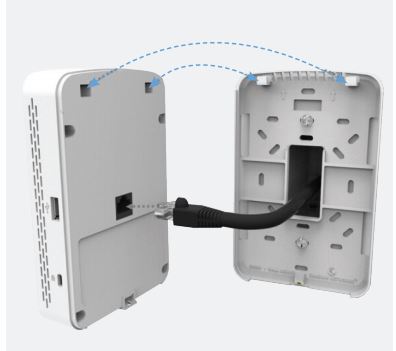

  • Access Point für Wandmontage
  • Bis zu 867 Mbps im 5 GHz Band
  • Bis zu 300 Mbps im 2,4 GHz Band
  • 5 GHz (2×2), 2.4 GHz (2×2
  • 802.3af/802.3at PoE PoE
  • 3x LAN an der Unterseite
  • WPA2/WPA3
  • 5 Jahre Garantie
Preis anfragen
SKU: 180337 Kategorien: , , , , Merkmale: , , , , , , , ,

Cambium Networks cnPilot E425H
Der Cambium cnPilot E425H 5GHz ist ein 2,4/5Ghz Wave 2 Access Point mit drei RJ45 Ports an der Unterseite welcher für die Wandmontage geeignet ist.
Durch sein schlichtes und unauffälliges Design ist der AP perfekt für Hotelzimmer, Konferenzräume und Büros geeignet.

Features:

  • 802.11a/b/g/n/ac Wave 2
  • 5 GHz (2×2), 2.4 GHz (2×2)
  • Maximal 15W PoE Ausgangsleistung
  • 25 dBm EIRP (5 GHz)
  • 3x Gigabit Netzwerkanschlüsse

Einsatzgebiete:

  • Hotels
  • Besprechungsräume
  • Mietwohnungen
Weight 0,268 kg
Dimensions 147 × 94 × 32 cm
Hersteller

Cambium Networks
Herstellerartikelnummer

PL-E425H00A-EU
Garantie

60 Monate
Datenblatt_EN

https://shop.allnet.de/media/pdf/23/ab/9e/180337-Datenblatt_EN.pdf
Wi-Fi

1 x 5 GHz radio (802.11a/n/ac Wave 2), 2×2
1 x 2.4 GHz (802.11b/g/n), 2×2
SU-MIMO / MU-MIMO: 2 streams
SSID Security

WPA3, WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open
Ethernet

Three IEEE Gigabit Ethernet auto sensing
Antenna

Internal omni-directional
2.4 GHz: 4 dBi / 5 GHz: 4 dBi
Max EIRP

2.4 GHz: 25 dBm / 5 GHz: 27 dBm
(EIRP limited by country regulations)
WLAN

100 clients, 16 SSIDs
WPA-TKIP, WPA2 AES, 802.1x, 802.11w PMF
Power

802.3af or 802.3at powered device
Typical load, no power out: 8 W
Typical load, with 15.4 W power out: 25 W
Power out: 15.4 W when input is 802.3at
MTBF

249k @ 40c
Security

Kensington lock slot, secure bracket
LEDs

Tri-color status LEDs
Ambient Operation Temperature

0ºC to 40ºC
Storage Temperature

-40ºC to 70ºC
Humidity

95% RH non-condensing
Certifications (compliance)

Wi-Fi Alliance 80211 a/b/g/n/ac, PP2.0 FCC, ETSI, CE, EN 60601-1-2, IEC60950
Authentication Encryption

802.1x EAP-SIM/AKA/AKA’/FAST, EAP-PEAP,
EAP-TTLS, EAP-TLS/MSCHAPv2, PEAPv0/
PEAPv1MAC authentication to local database (on AP,
on Controller) or external RADIUS. MAC auth fallback to guest portal
Scheduled WLAN

On/off by day, week, time of day
QoS

802.11e/WMM QoS. DSCP/ToS mapping
VLAN

802.11Q, max 4096
Fast Roaming

802.11r, OKC, Enhanced roaming
Mesh

Multi-hop (3), either band
Channel Selection

Auto RF: Manual, or automatic
Auto TX Power

Auto RF: automatically adjust max transmit power
Interfaces

HTTP / HTTPS web interface, SSL, Telnet
SNMP V1, V2, V3Syslog, SNMP traps, NTP
Deployment

cnMaestro Cloud, cnMaestro on-premises, Standalone AP
Services

Monetized, cloud-managed guest portal with design tools
APIs

RESTful management and statistics API
Presence location APISplunk WebSocket integration, WebSocketDNS, NAT, TCP connection log
