5-port 10/100/1000Mbit/s managed Gigabit Ethernet Switch mit 4x PoE Ausgabe (802.3af)
Highlights:
- 5 Port 10/100/1000Mbit/s Gigabit Ethernet Switch mit 4x PoE Ausgabe (802.3af/at)
- Eigenverbrauch 3W (PoE Budget ca. 60W für weitere 4 Ports)
- Smart managed
- Lüfterloses Design

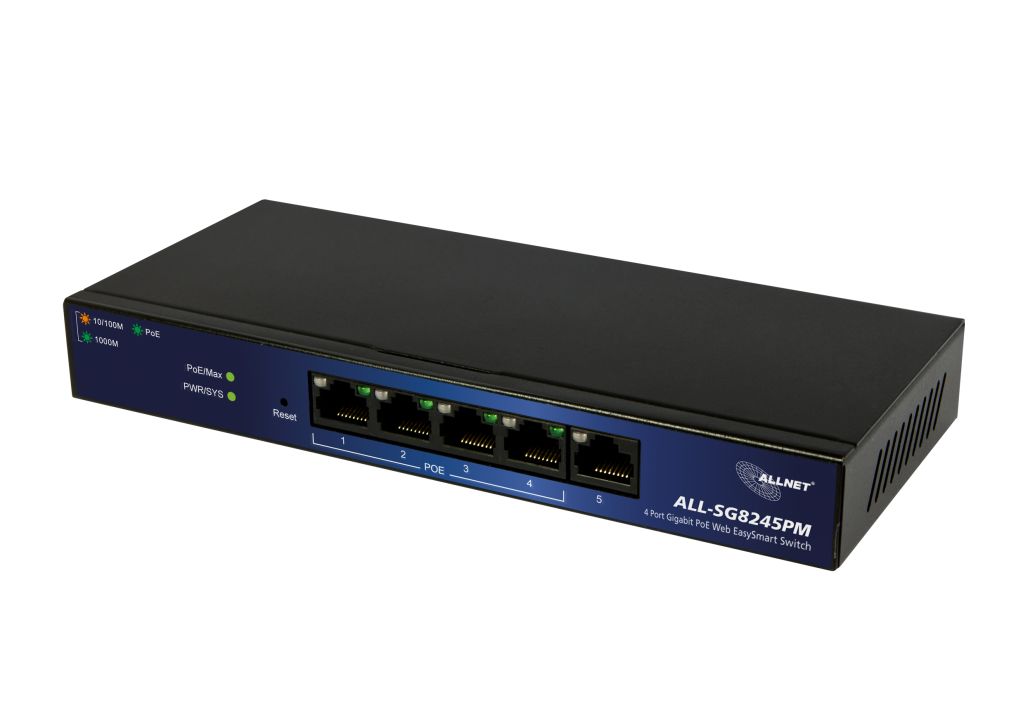

Der neue ALLNET ALL-SG8245PM Switch ist eine solide Basis für einen vernetzten Arbeitsplatz. Mit seinen insgesamt 5 abwärtskompatiblen Gigabit Ports lassen sich Computer, Drucker, Access Points, etc. zuverlässig miteinander vernetzen. Der ALL-SG8245PM kann über seine 4 PoE Ports (IEEE802.3af/at) PoE fähige Endgeräte auch mit Strom versorgen, sodass diese kein zusätzliches Stromkabel benötigen. Um den für einen Arbeitsplatz sehr wichtigen geräuschlosen Betrieb zu gewährleisten, ist der ALL-8245PM im lüfterlosen Design konzipiert. Für optimalen Nutzungskomfort ist er “smart managed“. Das heißt zum unter anderem für VLAN und QoS konfigurierbar.
Technische Daten:
| Switch working: | Layer 2-Switch, Web easy smart managed |
| Switch-Typ: | standalone |
| Standards: | IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T IEEE802.3az EEE IEEE802.3ad Link Aggregation IEEE802.1q VLAN IEEE802.1p-based QoS |
| Switching-Ports: | 5x RJ45 10/100/1000BaseT(X) |
| Special: | 4x PSE Port for PoE Devices |
| Uplink: | yes |
| Full Duplex Mode: | yes |
| Buffer Memory: | 1Mbits |
| Jumbo Frames: | 9216byte |
| MAC adress table: | 2K |
| Filtering/Forwarding: | Store-and-Forward |

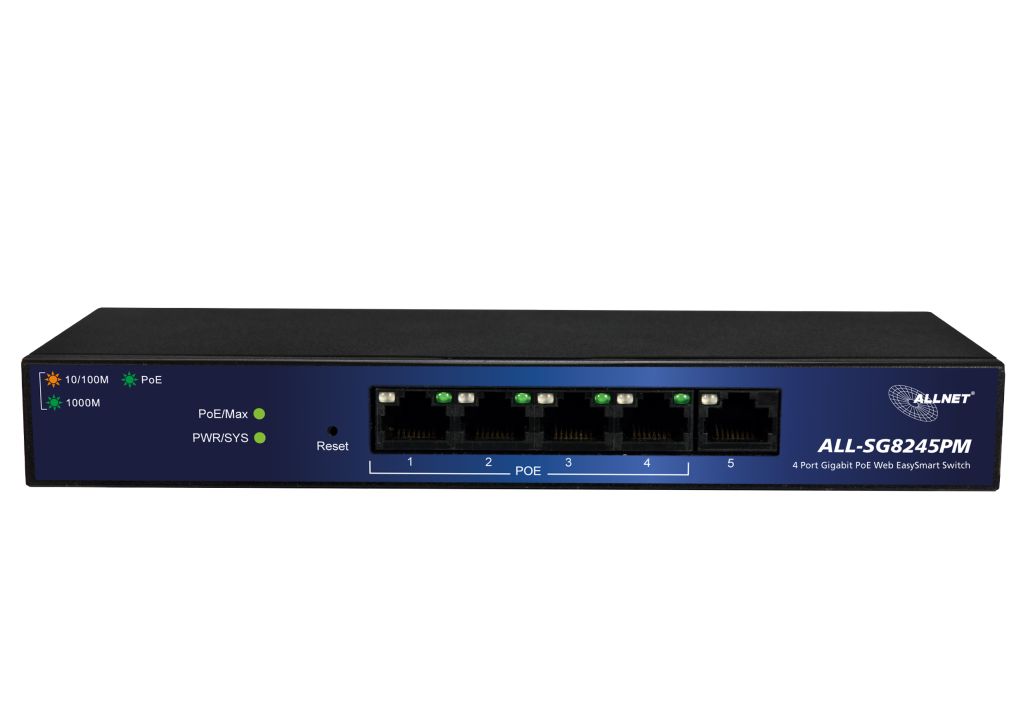

| LED Define: | Power/System: Green LED
PoE Alert: Green LED
RJ 45 Port:
PoE:
|
| Layer2 Basic: | |
| Port: | Auto Negotiation of speed and duplex modes Jumbo frame support |
| Mirror: | Port mirroring both on ingress and egress traffic |
| VLAN: | 802.1Q VLAN Port-based VLAN |
| LACP: | Link Aggregation = IEEE802.3ad |
| Multicast: | Blocking of unknown multicast traffic |
| Qos: | IEEE802.1p-based QoS Port-based QoS Scheduling Method = WFQ or SP |
| IGMP Snooping: | Support IGMPv1 Snooping RFC 1122, RFC4541 Support IGMPv2 Snooping RFC 2236, RFC4541 Support IGMPv3 Snooping(Partial) RFC 3376 |
| Security: | STP / Self Loop Support Broadcast Storm Control Support |
| Management: | User Interface Web-based Management User Account System password protection |
| PoE: | PoE power output On/Off management |
| Power Input: | |
| Power-Input: | AC to DC external power adapter |
| Housing: | Metall/ Desktop |
| PoE Output power capacity: | Maximum output :30W per each port 1. Compliant with IEEE802.3af/at standard, Following IEEE802.3at/at to support PoE or PoE+ 2. Automatically discover the connection of PD device and immediately sends power to it 3. Auto disable port if the port current is over 700mA or short happens 4. Priority default setting is lower port NO. has high priority 5. The maximum power used by power devices is defined by the following classification. When Port works in Auto Mode, the output port power limit will be associated with PD classification Value. 6. Follow the standard PSE pin-out standard of Alternative A (MAD-X) which is sending out power over number 1,2,3,6 pins of 8 wires of Ethernet CAT5 UTP cable |
| Dimension: | 193 x 84 x 26mm |
| Environment: | Operating Temperature: 0 ~ 50 °C |
| Marks: | CE FCC EMI class B, ROHS |
