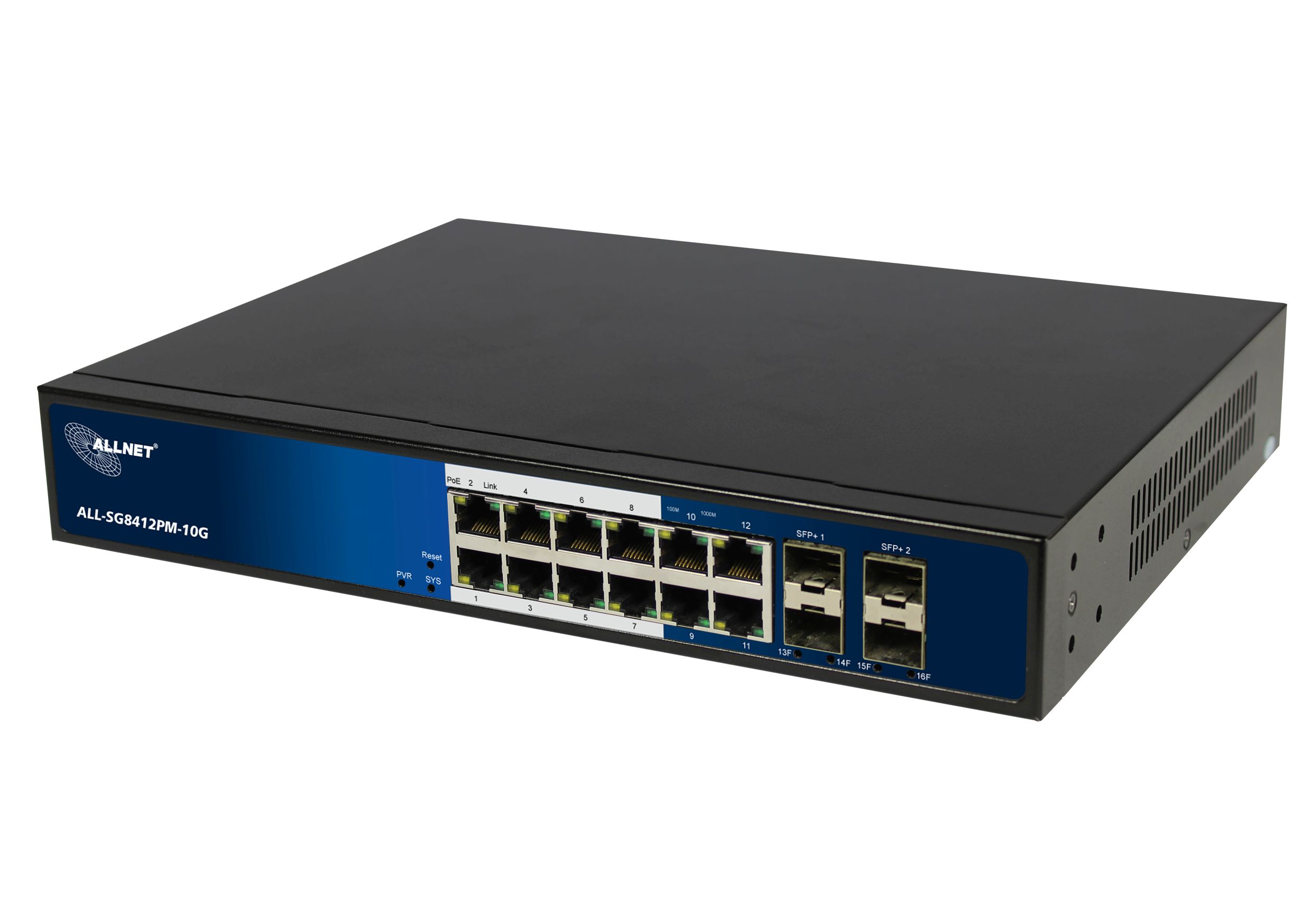

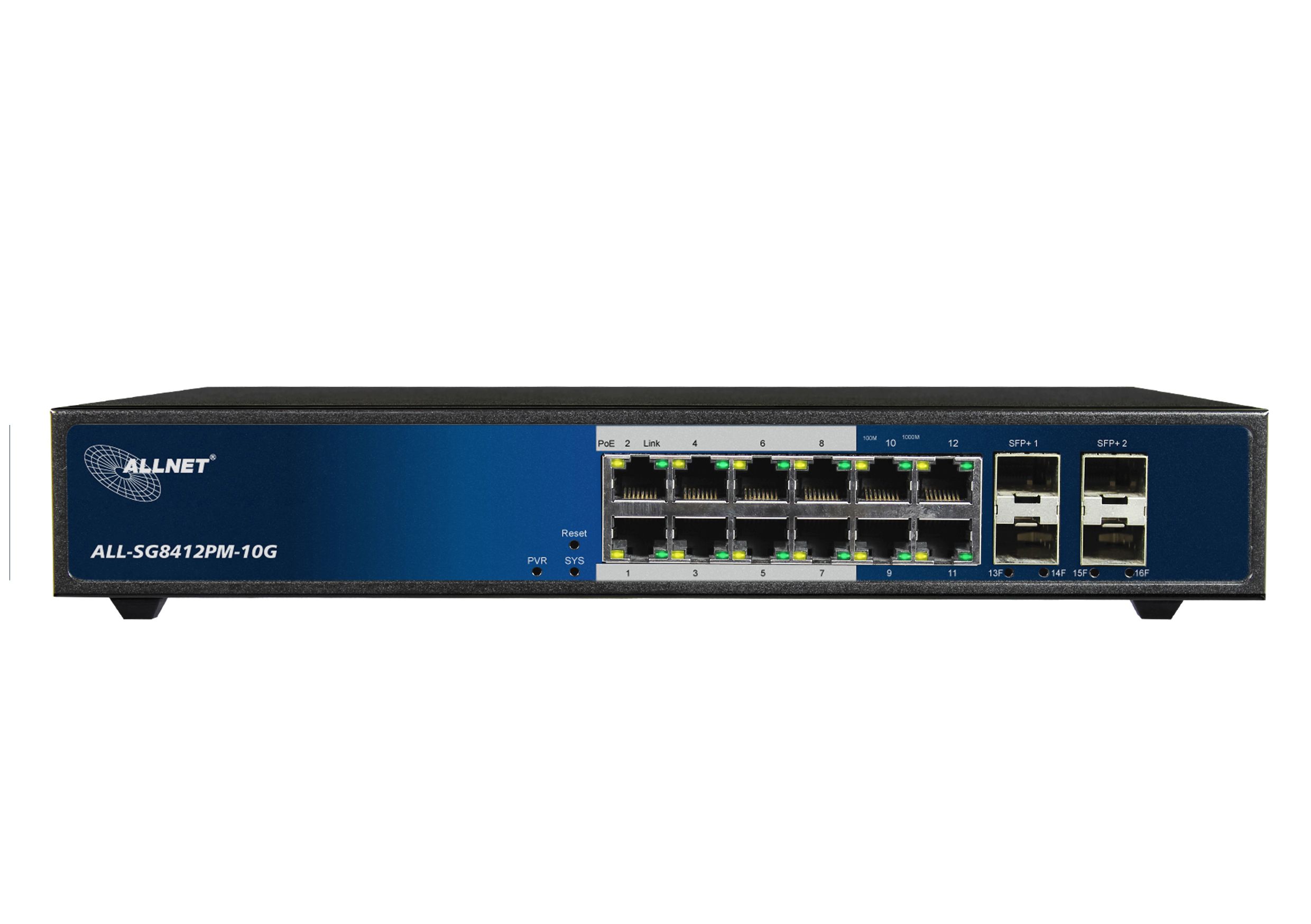

ALLNET Switch full managed 12 Port Gigabit 130W / 8 x PoE / 4 x SFP+/ 4 x LAN / Layer 3 / ALL-SG8412PM-10G
Highlights:
Der ALL-SG8412PM-10G ist ein Layer3 10G Uplink gemanagter PoE-Glasfaser-Switch. Er verfügt über 12×10/100/1000Base-T RJ45-Anschlüsse und 4×1/10G SFP+ Glasfaser-MiniGBIC Steckplatz-Anschlüsse. Port 1-8 Unterstützt PoE nach IEEE 802.3af/bei Standard-PoE-Stromversorgung. Single-Port-PoE-Stromversorgung erreicht 30W, und die maximale PoE-Ausgangsleistung beträgt 130W. Der Switch kann POE-Endgeräte wie z.B. Wireless AP, Webcam mit Strom versorgen, VoIP-Telefone, Gegensprechanlage für die visuelle Zugangskontrolle im Gebäude usw. über ein Patchkabel/Netzwerkkabel etc. Der Switch ist geeignet für Hotels, Campusse, Parks, Einkaufszentren, malerische Orte, Krankenhäuser, Fabriken Wohnheim und kleine und mittlere Unternehmen.
Der ALL-SG8412PM-10G verfügt über die volle Layer3-Netzwerkmanagement-Funktion, unterstützt IPV4/IPV6-Verwaltung, unterstützt statische Weiterleitung der vollen Leitungsrate der Route, unterstützt vollständige Sicherheitsschutzmechanismen, vollständige ACL/QoS-Richtlinie und reichhaltige VLAN
Funktionen und ist leicht zu warten und verwalten. Der Switch unterstützt mehrfache Netzwerkredundanz Protokolle STP/RSTP/MSTP und (ITU-T G.8032) ERPS(<50ms) zur Verbesserung der Verbindung Backup und Netzwerkzuverlässigkeit. Wenn das Netzwerk ausfällt, kann die Kommunikation
schnell wiederhergestellt werden, um eine wichtige ununterbrochene Kommunikation für Anträge zu gewährleisten.
Entsprechend den tatsächlichen Anwendungsanforderungen können Sie mehrere Anwendungsdienste wie PoE-Stromverwaltung, Hafenverkehrskontrolle, VLAN Division und SNMP über den Web-Netzwerkverwaltungsmodus gewährleisten/durchführen.
Technical Details:
| Model | ALL-SG8412PM-10G |
| Port | 12×10/100/1000Base-T RJ45 ports+ 4x 10G SFP+ Ports |
| PoE port | Port 1~8 support PoE (802.3af/at) |
| Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-TIEEE802.3z 1000Base-X IEEE802.3ae 10GBase-SR/LRIEEE802.3x |
| Ethernet Port Feature | 10/100/1000Base-T(X),Auto-sensing,Full/half duplex MDI/MDI-X self-adaption |
| Fiber Port Feature | Gigabit SFP /10G SFP+ interface (Fiber module is not included, need to order separately, module options include single/multi mode, single/dual fiber, LC) |
| Forwarding Mode | Store and Forward (Full wire speed) |
| Switching Capacity | 64Gpps(Non-blocking) |
| Forwarding Rate@64byte | 31.6Mpps |
| MAC | 32K |
| Buffer Memory | 32M |
| Jumbo frames | 9.6K |
| Twisted PairTransmission | 10BASE-T: Cat3,4,5 UTP(=100 meter) ; 100BASE-TX: Cat5 or later UTP(=100 meter) ; 1000BASE-X: Cat5e or later UTP(=100 meter) |
| Optical Cable | Multi Mode: 850nm 0-550M;Single Mode: 1310nm 0-40KM , 1550nm 0-120KM. |
| Power Supply Pin | Default: 1/2(+), 3/6(-); |
| MAX / Average Power Per Port | 30W/15.4W |
| Total PWR / Input Voltage | 130W (AC100-240V) |
| Power Consumption | Standby:<16W; Full Load:<120W |
| LED | Power indicator : PWR ( green); system indicator : SYS ( green) ; network indicator: Link (yellow); SFP fiber port :L/A (green); POE indicator : PoE (green) |
| Power Supply | Built in power supply AC100~240V 50-60Hz 2.3A |
| Operation TEMP / Humidity | -10~+40°C; 5%~90% RH Non-condensing |
| Storage TEMP / Humidity | -20~+65°C; 5%~95% RH Non-condensing |
| Port lightning protection | Port lightning protection : 4KV 8/20us |
| Managed Feature | |
| PoE Management | Total power limit of PoE power supply PoE output power allocation per port, close /af/at PoE output priority configuration for each port PoE working state display per port Power delay start PoE work and time scheduling |
| Layer 3 Function | Support L2+ managed function, |
| VLAN | Support port based VLAN (4K), IEEE802.1q Support protocol based VLAN Support Access, Trunk, Hybrid three types of port configuration Support QinQ configuration |
| Port Aggregation | Support LACP Support static polymerization Support the largest 8 aggregation groups, each aggregation group supports 8 ports |
| Spanning Tree | STP (IEEE802.1d) RSTP (IEEE802.1w) MSTP (IEEE802.1s) |
| Industrial Ring Network Protocol | Support G.8032 (ERPS), support 255 loops at most, and supports 1024 devices per ring. The self healing time of the ring network is less than 20ms |
| Multicast | Support IGMP Snooping V1/V2 and support 1024 multicast groups at most. Support the user’s quick departure mechanism Support MLD Snooping V1/V2 Support multicast VLAN |
| Image | Bi-directional traffic mirroring supporting the basic port |
| QoS | Diff-Serv QoS Each port supports 8 output queues Support 802.1p/DSCP priority mapping Support queue scheduling mechanism (SP, WRR, SP+WRR) priority tag Mark/Remark stream based packet filtering Support for stream based redirection Support flow based speed limit |
| ACL | Support L2 to L4 packet filtering function, can match the first 80 bytes of the message, provide based on the source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN and other definition ACL. Support ACL based on port and VLAN |
| Safety Characteristics | Support user grading management and password protection Support IEEE802.1X authentication / centralized MAC address authentication Support AAA&RADIUS authentication Support the number of MAC address learning restrictions Support MAC address black hole Support SSH 2 to provide secure passwords for user login. Support SSL to ensure data transmission security Support port isolation Support the speed limit function of ARP message Support IP source address protection Support ARP intrusion detection function Support against DoS attacks |
| VLAN | Support port based VLAN (4K), IEEE802.1q Support protocol based VLAN Support Access, Trunk, Hybrid three types of port configuration Support QinQ configuration |
| Port Aggregation | Support LACP Support static polymerization Support the largest 8 aggregation groups, each aggregation group supports 8 ports |
| Spanning Tree | STP (IEEE802.1d) RSTP (IEEE802.1w) MSTP (IEEE802.1s) |
| Industrial Ring Network Protocol | Support G.8032 (ERPS), support 255 loops at most, and supports 1024 devices per ring. The self healing time of the ring network is less than 20ms |
| Multicast | Support IGMP Snooping V1/V2 and support 1024 multicast groups at most. Support the user’s quick departure mechanism Support MLD Snooping V1/V2 Support multicast VLAN |
| Image | Bi-directional traffic mirroring supporting the basic port |
| QoS | Diff-Serv QoS Each port supports 8 output queues Support 802.1p/DSCP priority mapping Support queue scheduling mechanism (SP, WRR, SP+WRR) priority tag Mark/Remark stream based packet filtering Support for stream based redirection Support flow based speed limit |
| ACL | Support L2 to L4 packet filtering function, can match the first 80 bytes of the message, provide based on the source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN and other definition ACL. Support ACL based on port and VLAN |
| DHCP | Support DHCP Client Support DHCP Snooping Suport DHCP Serve Suport DHCP Relay |
| Management And Maintenance | Support Console/AUX Modem/Telnet/SSH2.0 CLI command line configuration Support WEB network management (HTTPS) Support FTP, TFTP, Xmodem Support SNMP V1/V2C/V3 Support one bond reduction Support NTP clock Support system work log Support Ping detection Support cable state detection Support CPU instant utilization status view Support link layer discovery protocol LLDP |
| System Requirements | Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later; Cat5e or later Ethernet cable; TCP/ IP, network adapter and network operating system (Microsoft Windows, Linux or Mac OS X) installed on on every computer in the network |
19″ Zoll Winkel nicht imLieferumfang
