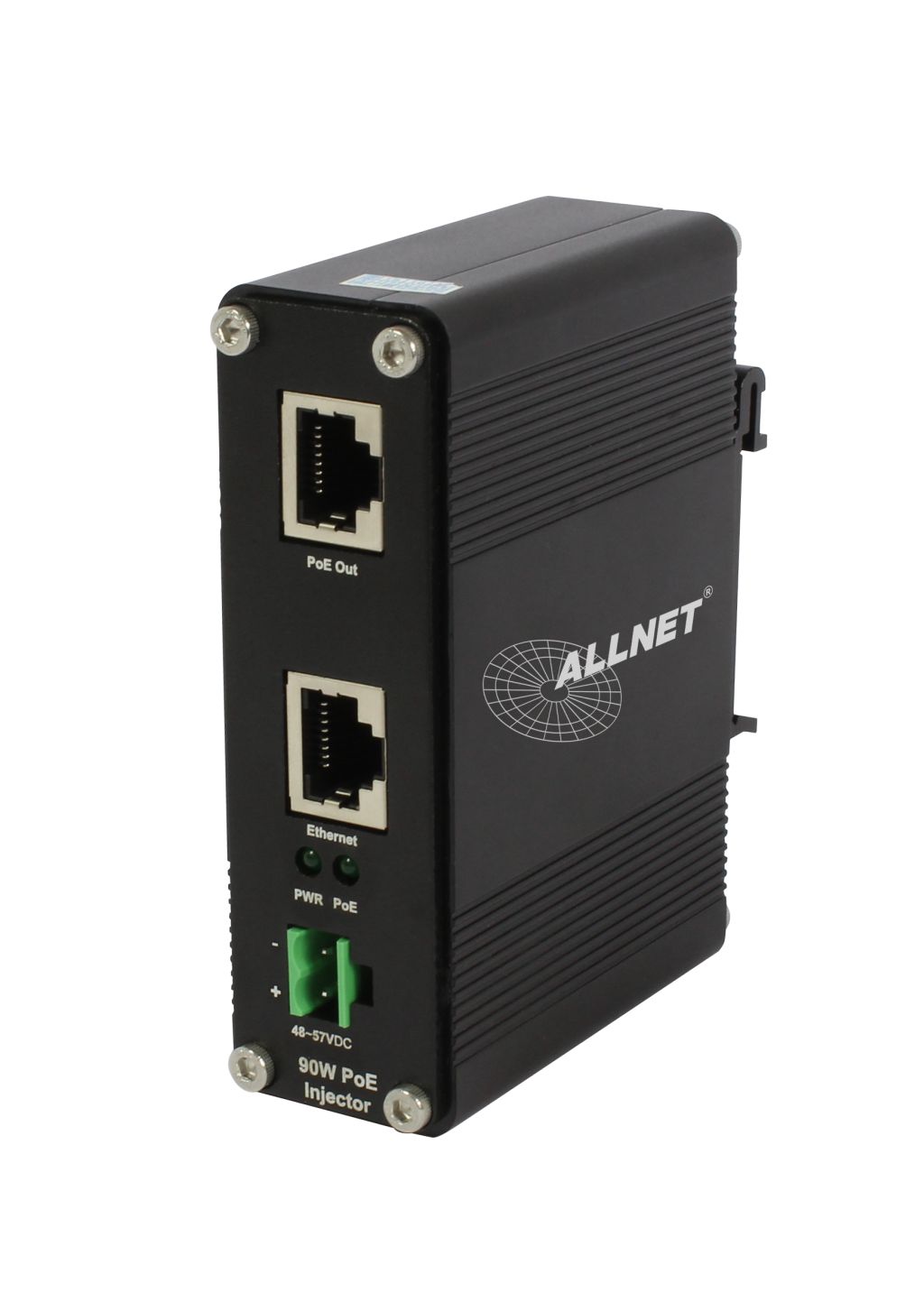

Highlights:
- 1 RJ45 Ethernet Dateneingang + 1 RJ45 Power over Ethernet Ausgang (Data + Power)
- 90W LTPoE++ Power Sourcing Equipment Unterstützung
- DIN-Schienen- und Wandmontageträger
- 48~57VDC Klemmleiste für optionale Externe Netzteile (ACHTUNG: NETZTEIL WIRD NOCH BENÖTIGT)
- Unterstützt 10/100/1000Base-TX
- IEEE802.3at PoE+ kompatibel
- Umfangreiche LED-Anzeigen für die PoE-Diagnose
- -40°C bis 75°C Betriebstemperatur
Technical Details:
| Elements | Specifications |
| Standards: | IEEE802.3af/at Power over Ethernet |
| Processing Type: | Forward Half-duplex, Full duplex |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 1000Base-TX: Cat5 or above |
| Maximum Distance: | Cat5 UTP up to 100m |
| Connector: | 2 x RJ45 |
| Input Power: | 48~57VDC (Terminal Block) |
| Power Consumption: | 95W Max. |
| LED Indicators: | Power – Power-Status PoE – PoE Status |
| PoE: | IEEE802.3at, LTPoE++ 90W 4 pair output power for LTPoE++ (90W) 2 pair output power for PoE+ (30W) |
| Dimensions (W x D x H) | 31 × 80 × 96 mm |
| Weight: | 0.2 Kg |
| Casing: | Aluminum case |
| Mounting Options: | DIN Rail / Wall Mount |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Operation Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | > 200,000 hrs |
| Regulatory Approvals: | CE, RoHS EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024:2010 EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
| Package Content: | 1x Hardened Gigabit PoE Injector 1x Wall Mount plates 1x Din Rail Clip 1x Quick Installation Guide |
