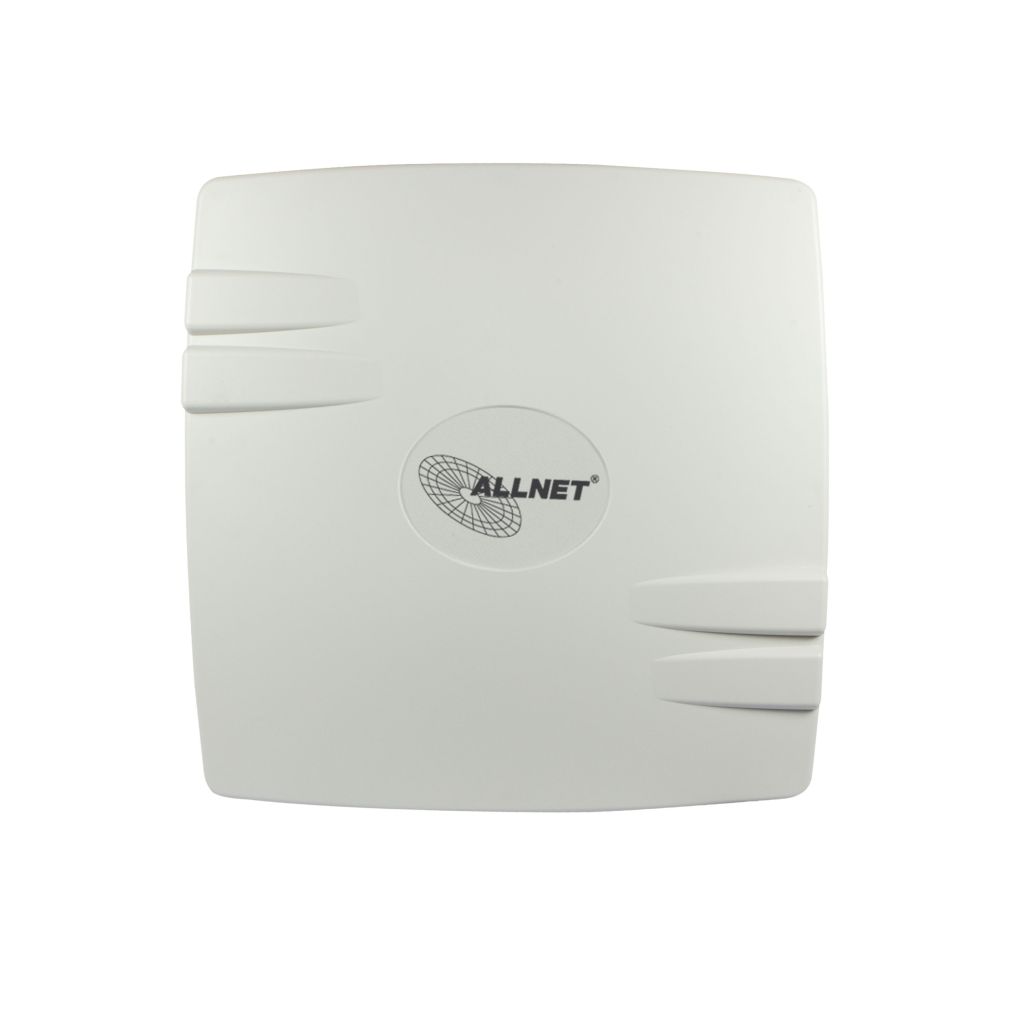

ALLNET Antenne 2, 4/5 GHz Flat Patch Outdoor 4/7 dBi N-Type

Frequency range:

2400MHz – 2500MHz
5150MHz – 5850MHz

VSWR:

Nominal 1.5:1, Maximal 2:1

Nominal Impedance:

50 ohm

Gain:

4 dBi @ 2,45GHz
7 dBi @ 5,8GHz

Polarization:

Vertical or Horizontal

Azimuth Beamwidth (3dB):

Nominal 25° @ 2,45GHz
Nominal 15° @ 5,8GHz

Elevation Beamwidth (3dB):

Nominal 35° @ 2,45GHz
Nominal 25° @ 5,8GHz

Maximum Power:

10 W

Enclosure:

185mm x 185mm x 45mm

Connectors:

N female

IP Protection:

IP 67

Temperature range:

from -40 °C to 80 °C

Wind Speed:

160Km/h
