Highlights:
- Single Port 10/100/1000Mbps adapter
- PCI Express v1.1 x1 lane
- RJ45 Connectivity
- Low-cost, low-power
- VLAN Support
- Innovative power management features
- MSI,MSI-X support
- Excellent small packet performance for network appliances

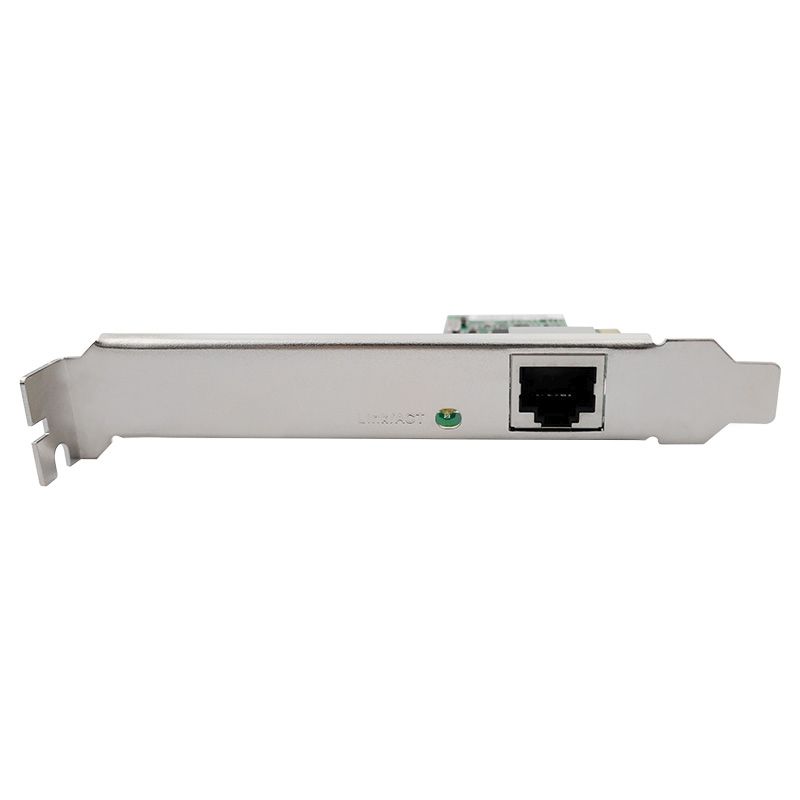

- Low profile and full-height bracket
Overview:

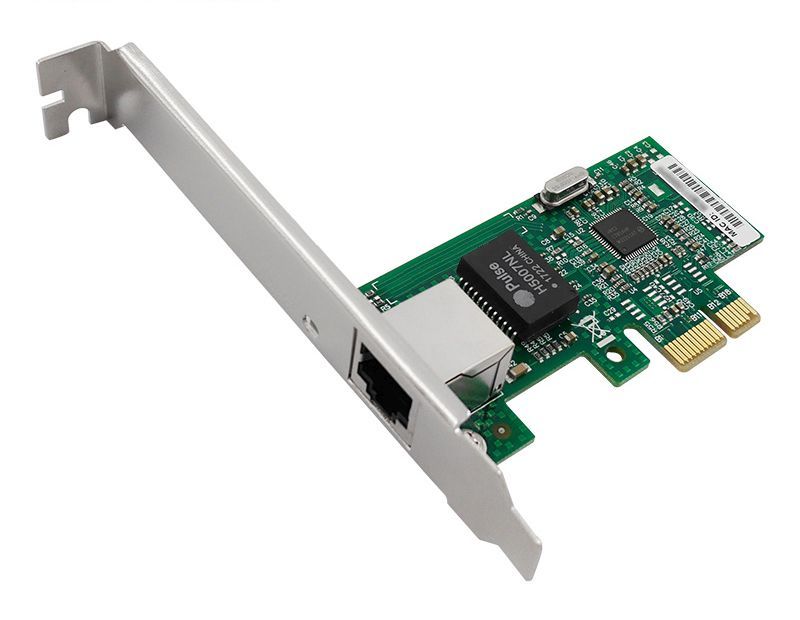

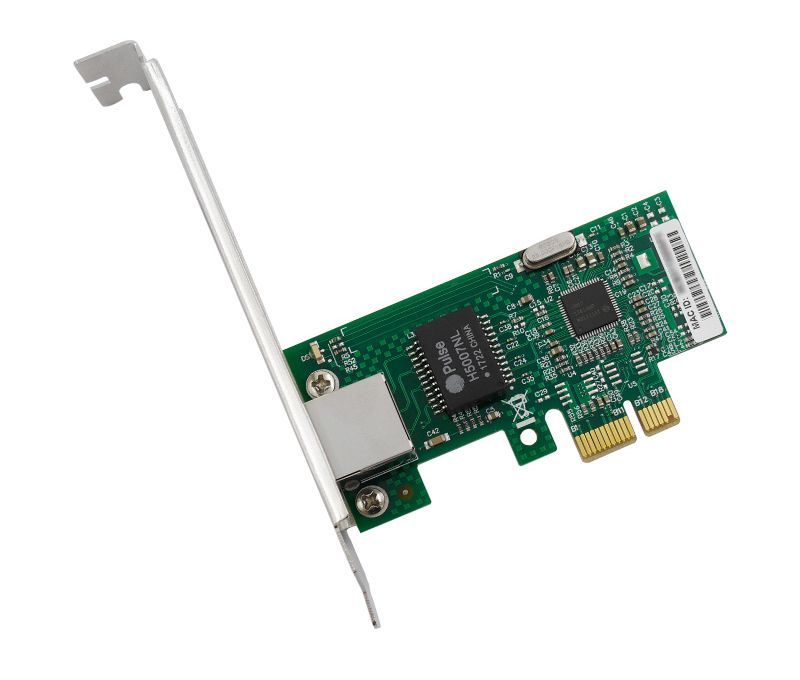

ALL0142-1G-DTX is a PCI Express v1.1 x1 manageable Gigabit RJ45 Single Port Network Card.The Card contains two transmit and two receive queues for the single port. It has advanced interrupt-handling,IPv4 and IPv6 checksum offload,TCP/UDP checksum offload features and the Auto-Negotiation (Nway) function ,Jumbo Frame support.With single UTP/STP and the Auto-Negotiation (Nway) function support, the Card can auto-negotiate 10Mbps, 100Mbps or 1000Mbps speed, and half or full duplex mode with its link partner (a hub, for example). Supports ACPI, compliant with PCI Express2.1. Full range of drivers are provided for major Operating Systems.
Technical Details:
| Controller | Intel I211 |
| Transmission rate per port | 10/100/1000Mbps |
| Network Standard Physical Layer Interfaces | 1000BASE-T:Cat 5eor higherup to 100m |
| 100BASE-Tx:Cat5/5e/6or higherup to 100m | |
| 10BASE-T: Cat3/4/5/5e/6or higherup to 100m | |
| Jumbo Frame Support | Up to 9.5 KB |
| Operating Temperature | 0 °C to 55 °C (32 °F to 131 °F) |
| Network Virtualization | |
| LED Indicators | 1000Mbps/s:Yellow Link and Green Ack, |
| 100Mbps/s:Green Link and Green Ack,10Mbps/s: Not illuminate | |
| Operating System Support | Windows Server2008 / 2008 R2 / 2012 /2012 R2 /2016 R2 |
| Windows 7 / 8 / 8.1 / 10 | |
| Linux Stable Kernel version 2.6.x / 3.x / 4.x or later | |
| Linux SLES 10 / 11 or later | |
| VMvare ESX/ESXi 5.x/6.x or later |
