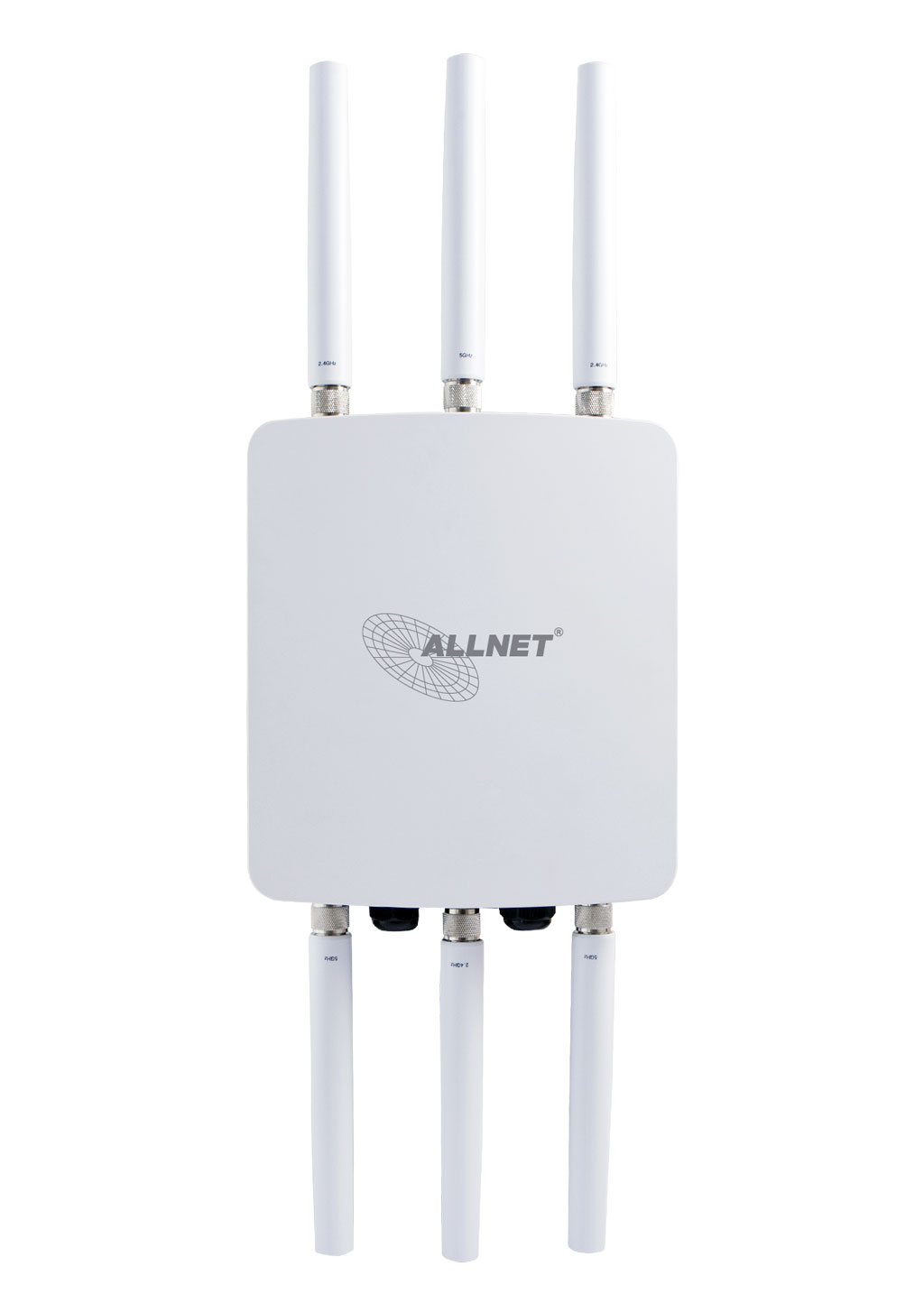

1750Mbit Wireless AC Controlled IP68 Full-Outdoor Dual Band AccessPoint mit PoE
HIGHLIGHTS
- 3×3/3T3R-Stream 802.11ac Wireless LAN Concurrent
- Bis zu 1300Mbps im 5 GHz Netzwerk
- Bis zu 450Mbps im 2,4GHz Netwerk
- weiträumige Abdeckung 29 dBm im 2.4 GHz & 5 GHz Band

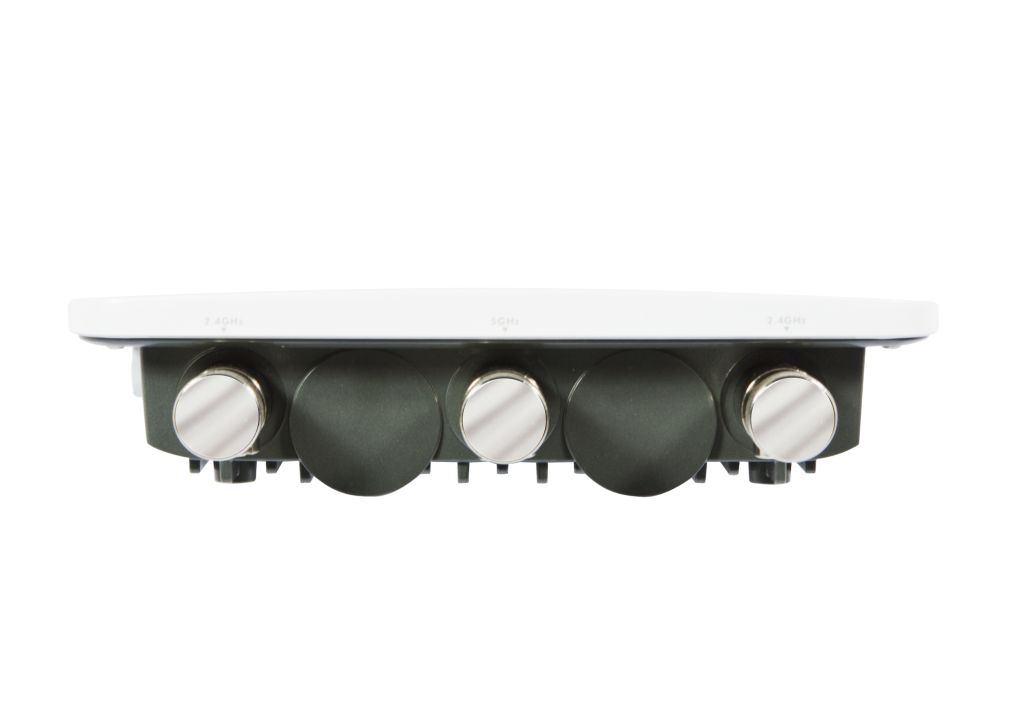

- 6x N-Type Anntennen-Anschlüsse für flexible Antennen-Installationen
- 6x abnehmbare 5dbi Rundstrahl-Antennen inklusive
- 2ter PoE Passtrough Gigabit LAN Port für optionale Kamera oder anderes PoE Endgerät
- Unterstützt MESH Wireless für einfache flexible Installation mit Selbstheilung
- Stromversorgung via externes Netzteil oder Power over Ethernet nach IEEE802.3at 30W
Der ALL-WAPC0486AC IP68 Full-Outdoor Accesspoint unterstützt Dual-Band im 3×3 Verfahren mit max. 867Mbit im 5GHz und 300Mbit im 2,4GHz Netz. Der ALL-WAPC0465AC IP55 Semi-Outdoor Accesspoint kann sowohl einzeln als auch mit dem optionalen Controller ALL-WAPC0450C verwendet werden. Die 6x N-Type Antennenanschlüsse machen den AP äußerst flexibel und verwandelt den AP durch externe optionale Antennen zu dem Meister und flexibelsten aller Accesspoints. Denn erst die passende Antennentechniken wie Rundstrahl / Flat-Patch / Yagi oder Sector-Antennen holen das Maximum aus dem AP raus. Der zweite Gigabit PoE LAN Port am AP verhilft einem dahintergeschalteten Endgerät zur Strom und Datenanbindung ohne das ein zusätzliches Stromkabel oder Netzteil verwendet werden muß. Der AP kann einzeln und erst in Kombination mit dem Controller entfaltet sich erst der AP mit Zusatzfunktionen wie Fast-Roaming und Handover etc.
Technical Details:
| Technical Specifications | |
| Standard | IEEE 802.11b/g/n on 2.4 GHz IEEE 802.11a/n/ac on 5 GHz IEEE 802.3at IEEE 802.1r IEEE 802.1k IEEE 802.11x |
| Memory Capacity | Memory: 256 MB Flash Memory 16 MB |
| Antenna | 3 x 5dBi External Omni-Directional N-Type Antennas for 2.4 GHz 3 x 7dBi External Omni-Directional N-Type Antennas for 5 GHz |

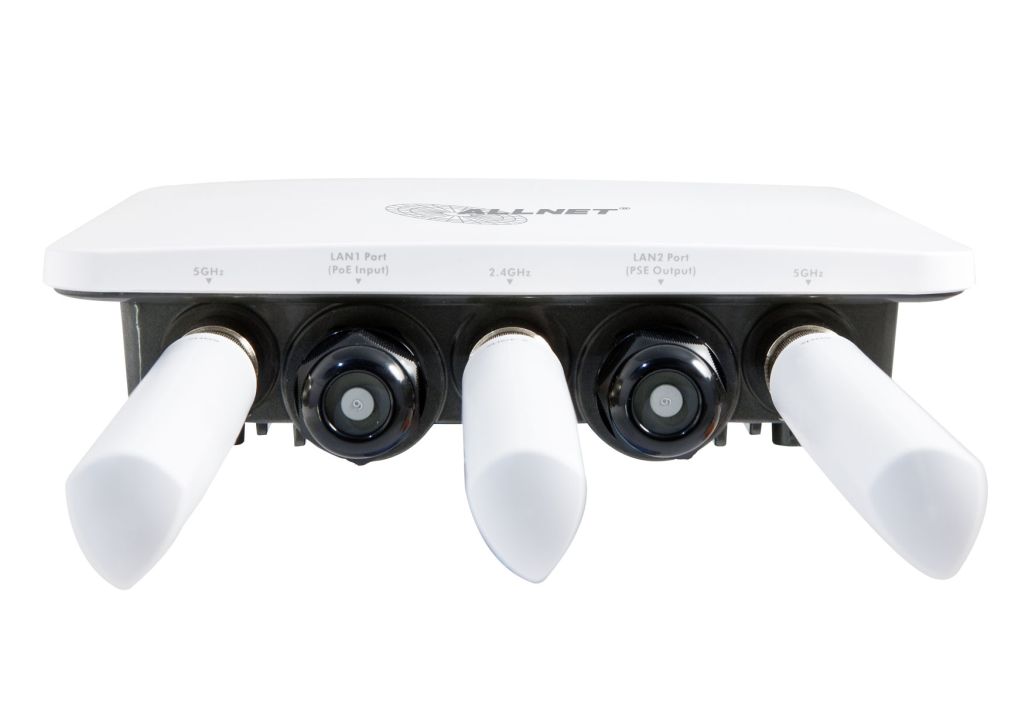

| Physical Interface | – 2 x 10/100/1000 Gigabit Ethernet Ports) – LAN1: Supports 802.3at PoE Input – LAN2: Data & 802.3af PoE Pass-Through) |
| LED Indicators | 1 x Power 2 x WLAN (Wireless Connection) 2.4GHz 5GHz 2 x LAN |
| Power Source | External Power Adapter DC IN, 48 V/0.8A IEEE 802.3at Compliant Source Active Ethernet (PoE) |
| PSE Output | LAN2 802.3af power source with included power adapter |
| Surge Protection | 4KV |
| ESD Protection | Contact: 6KV Air: 8 KV |
| Ingress Protection Marking | IP68-Rated Waterproof/Dustproof Enclosure |

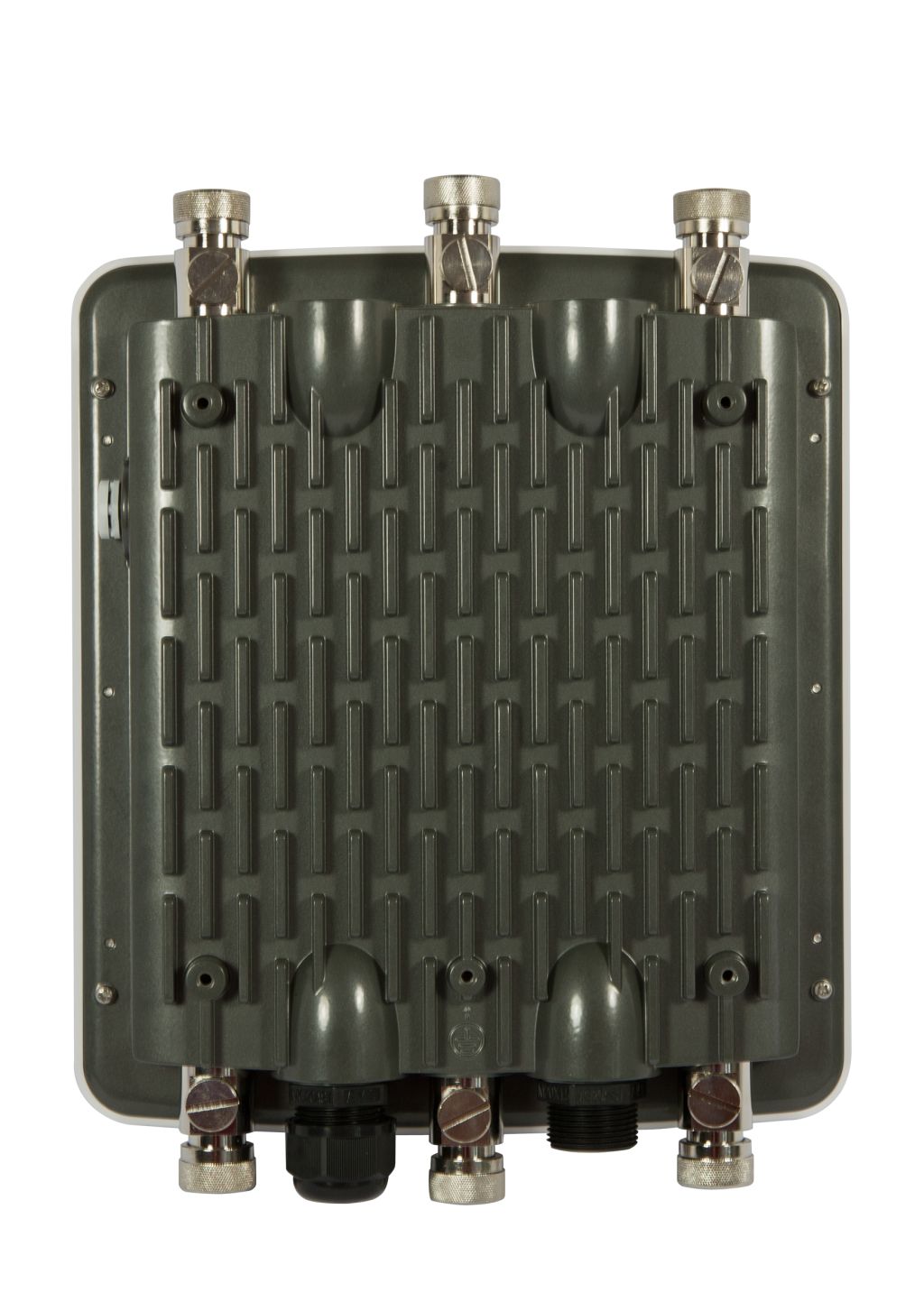

| Mounting | Ceiling Mount Wall Mount |
| Wireless & Radio Specifications | |
| Operating Frequency | Dual-Radio Concurrent 2.4GHz & 5GHz |
| Operation Modes | Access Point Mesh Access Point |
| Frequency Radio | 2.4GHz: 2400MHz ~ 2835MHz 5GHz: 5150MHz ~ 5250MHz, 5470 ~ 5725MHz, 5725MHz ~ 5850MHz |
| Transmit Power | Up to 29 dBm on 2.4 GHz Up to 29 dBm on 5 GHz Max transmit power is limited by regulatory power |
| Radio Chains/Spatial Streams | 3×3:3 |
| Supported Data Rates (Mbps) | 2.4 GHz: Max 450 5 GHz: Max 1300 802.11b: 1, 2, 5.5, 11 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 450 (MCS0 to MCS23) 802.11ac: 6.5 to 1300 (MCS0 to MCS9, NSS=1 ~3) |
| Supported Radio Technology | 802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division Multiplexing (OFDM) |
| Channelization | 802.11ac with 20/40/80 MHz channel width 802.11n with 20/40 MHz channel width 802.11a/b/g with 20 MHz channel width |
| Supported Modulation | 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| Management | |
| Multiple BSSID | Supports up to 8 SSIDs per radio |
| VLAN Tagging | Supports 802.1q SSID-to-VLAN tagging VLAN Pass through |
| QoS | Compliant with IEEE 802.11e Standard WMM |
| SNMP | v1, v2c, v3 |
| MIB | I/II, Private MIB |
| Management Features | |
| Deployment Options | Standalone (Individually Managed) Managed Mode (with optional Controller ALL-WAPC0450C) |
| Wireless Management Features (with ALL-WAPC0450AC-Controller) | AP Auto Discovery and Provisioning AP Auto IP Assignment AP Group Management Remote AP Rebooting AP Device Name Editing AP Radio Settings Band Steering Traffic Shaping Fast Roaming (802.11k & 802.11r) Pre-Authentication (802.11i, 802.11x) PMK Caching (802.11i) RSSI Threshold AP Client Limiting Client Fingerprinting AP VLAN Management VLANs for AP – Multiple SSIDs Secured Guest Network Captive Portal Access Point Status Monitoring Rogue AP Detection Wireless Client Monitoring Background Scanning Auto Transmit Power Auto Channel Email Alert Wireless Traffic & Usage Statistics Real-time Throughput Monitoring Visual Topology View Floor Plan View Map View Wireless Coverage Display SSL Certificate Remote MAC Address Database (RADIUS) Unified Configuration Import/Export Bulk Firmware Upgrade Capability One-Click Update Intelligent Diagnostics Kick/Ban Clients Wi-Fi Scheduler Traffic Shaping |
| Configuration | Web Interface (HTTP) CLI (Telnet) |
| Control Features | Managed Mode (by ALL-WAPC0450C) Auto Reboot One-Click Firmware Upgrade Firmware Upgrade: Web interface or CLI (FTP/HTTP) |
| Security | WPA/WPA2 Enterprise Hide SSID in beacons MAC Address Filtering Https Support SSH Support Client Isolation L2 Isolation |
| Environmental & Physical | |
| Temperature Range | Operating: -4 °F to 158 °F, -20 °C to 70 °C Storage: -22 °F to 176 °F, -30 °C to 80 °C |
| Humidity (non-condensing) | Operating: 90% or less Storage: 90% or less |
| Device Dimensions & Weights | |
| ALL-WAPC0486AC Device (w/o antennas) | Weight: 4.17 lbs. (1891.48 g) Length: 11.22” (285 mm) Width: 8.58” (217.93 mm) |
| Package Contents | – ALL-WAPC0486AC Dual-Band 802.11ac Outdoor Access Point – Three (3) Detachable 2.4 GHz omni-directional antennas – Three (3) Detachable 5 GHz omni-directional antennas – Power Adapter (48V/0.8A) – PoE Injector (EPE-48GR) – Grounding Cable – Pole Mount Bracket – Wall Mount Base – Mounting Screw Set – Quick Installation Guide |
